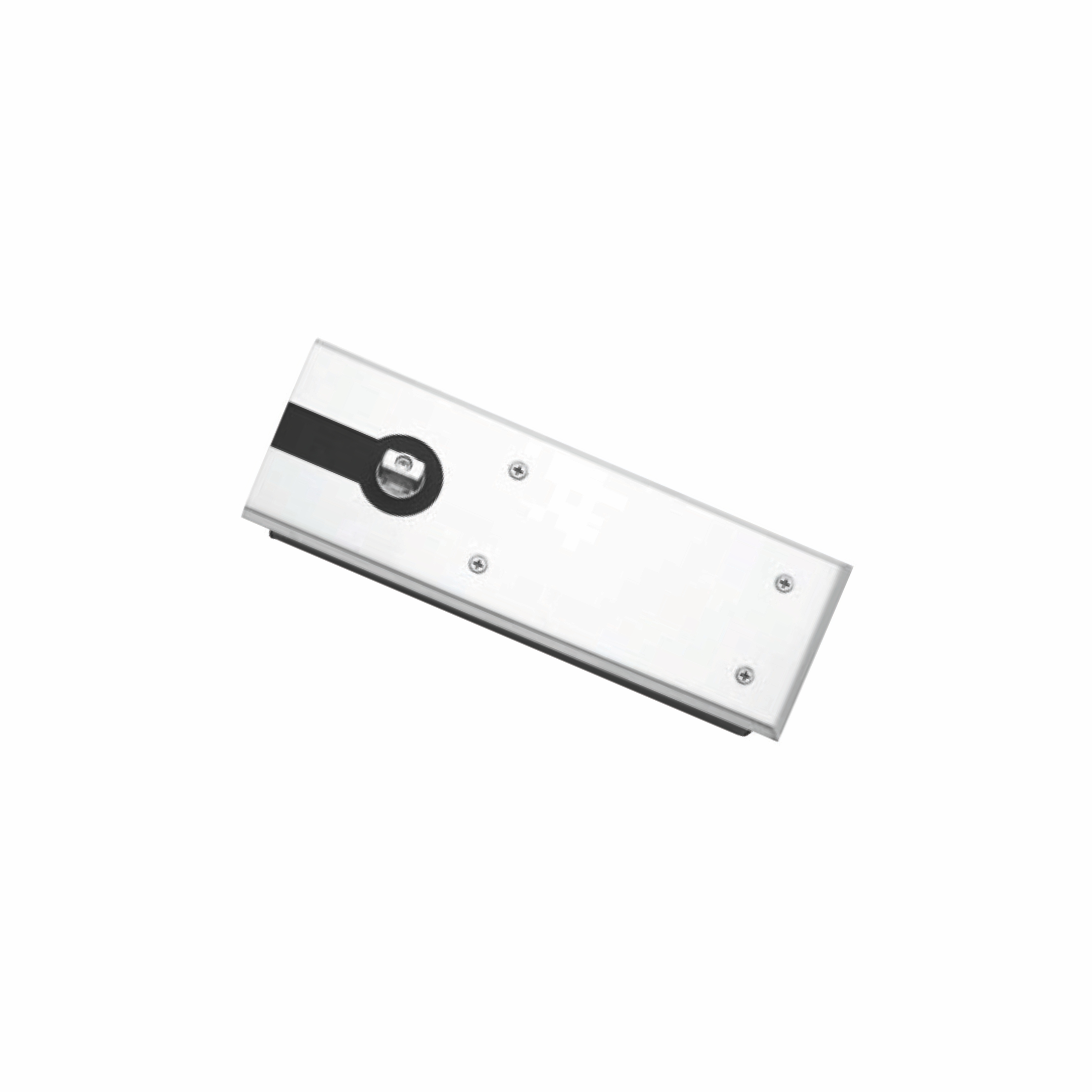

AF-224P

Description
  • Floor spring with adjustable closing force for very thin slab
  • Certified EN1154, size EN2-4
  • 5,00,000 cycles tested
  • Suitable for fire and smoke protection doors
  • Maximum door weight 150kg

Characteristics of AF-224P:

  • CE Mark product
  • Easy installation with thin body design
  • Closing speed adjustable (1) - 145˚ -15˚
  • Latching speed (2) - 15˚-0˚
  • Standard 90˚ hold-open, optional - Non hold-open
  • Maximum door weight 150 kg
  • Suitable for wooden/glass/aluminium profile doors application
  • Body adjustable inside cement box with height upto 4mm, width up to 4mm, length up to 4mm
