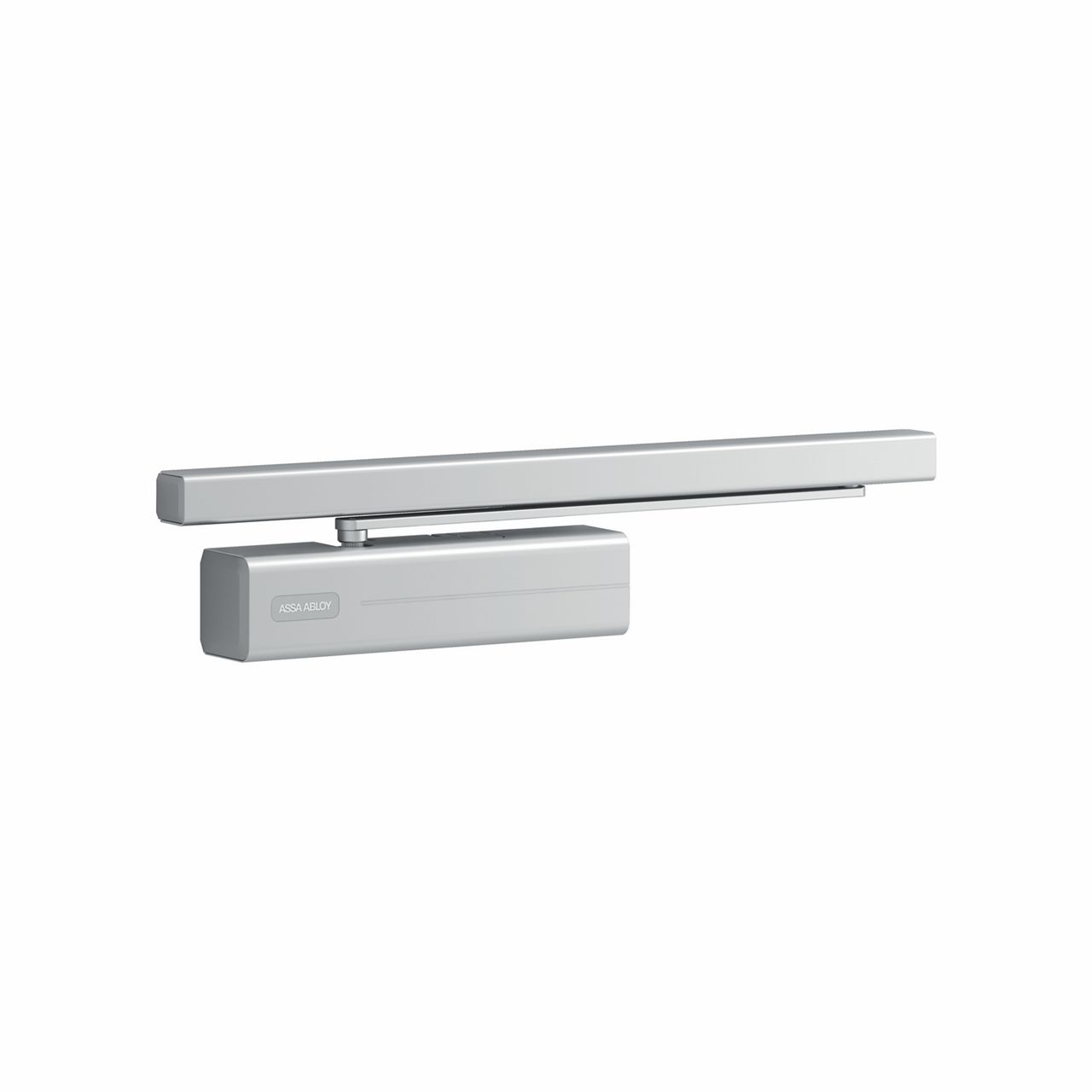

DC 700 with G460

Technical Details:

  • Door closer with Cam-motion technology and guide ® rail with electro-mechanical hold-open device for single leaf doors
  • Certified in compliance with EN 1154/EN1155 Size 3-6
  • Hold-open angle continuously adjustable between 70°-130°
  • Suitable for fire and smoke protection doors up to 1400mm wide

Characteristics of DC 700 with G460

  • Electro-mechanical hold-open device
  • Continuously adjustable holding force
  • Hold-open angle adjustable between 70°-130°
  • Door opening angle up to 130°
  • Can be used for left and right handed doors
  • Standard mounting position on hinge side and non-hinge side
  • Axis continuoulsy height adjustable up to 14 mm
  • Large range of applications
  • Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
  • Customised finishes available on request

Characteristics for hold open link arm L191:

  • Hold-open angle adjustable up to 150˚
  • Hold-open mode can be enabled and disabled as required
  • Same installation as link arm
  • Cannot be used with fire and smoke protection doors

Characteristics for special model DC300DA:

  • Delayed closing adjustable from front
  • Other features as in Model DC300
