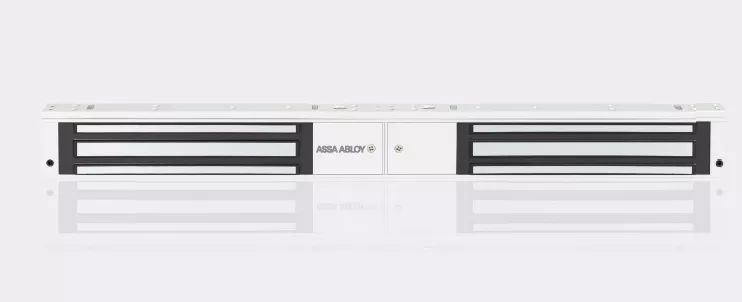

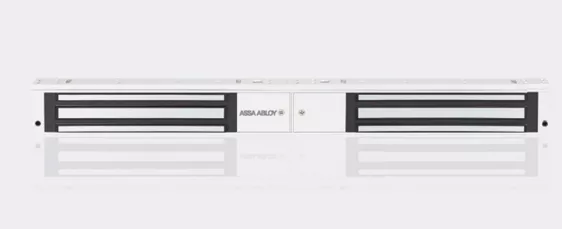

A4 Double Leaf

Double Series

The Electromagnetic Locks operate with holding forces from 500kgup to 560kg. Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions as well as glass door applications, the range caters to most  electromagnetic needs.

With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

Key Features

• Fail-safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Instantaneous Release: smart electronics on the Z Series Electromagnets eliminate residual magnetism
• 3 Year ASSA ABLOY Warranty

Applications

• Aluminium doors
• Glass doors
• IT Storage rooms
• Access control
• Surface mount for inswing and outswing doors

Standards and Compliance

• CE Approved
• UL Listed
