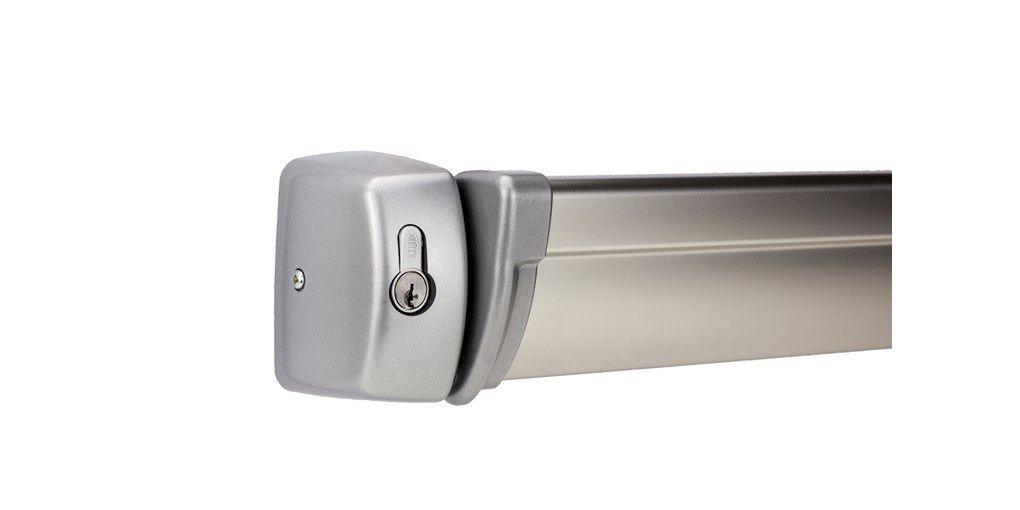

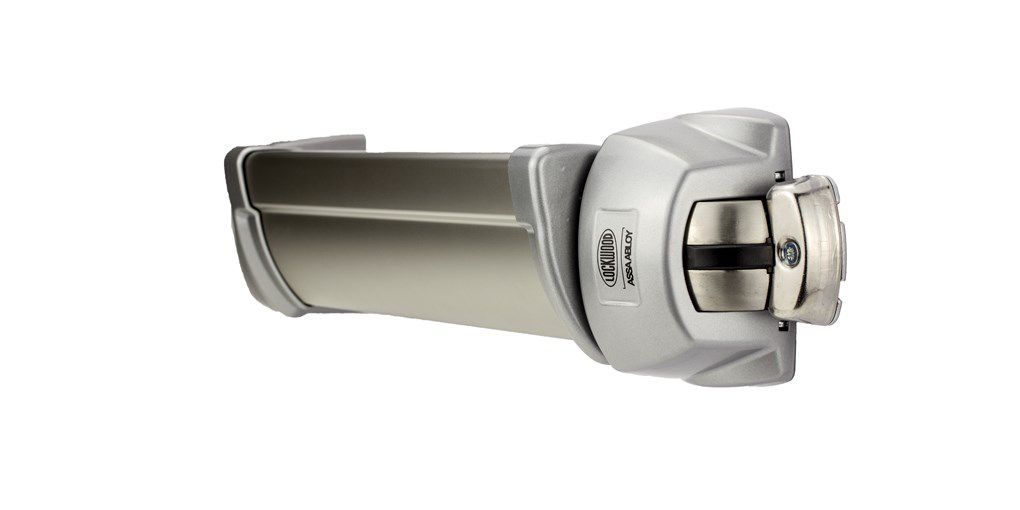

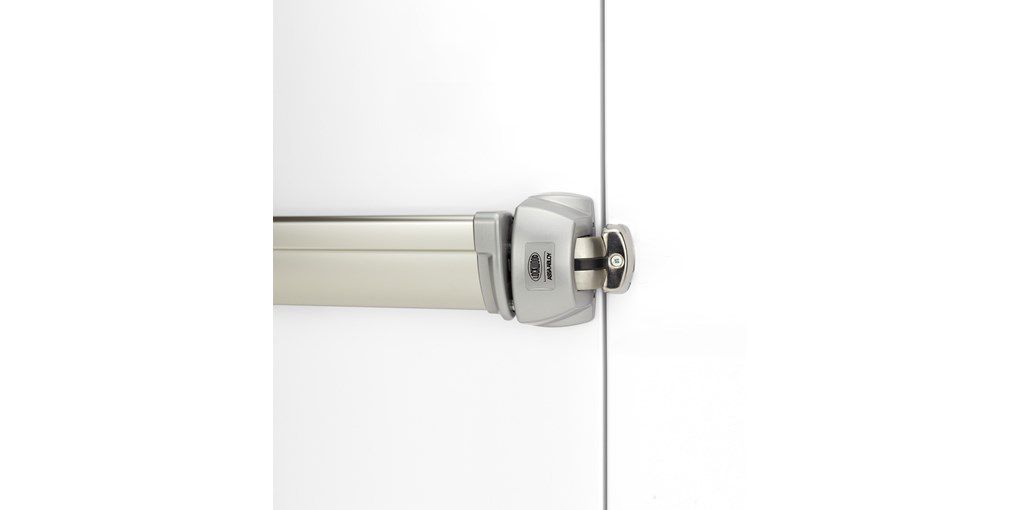

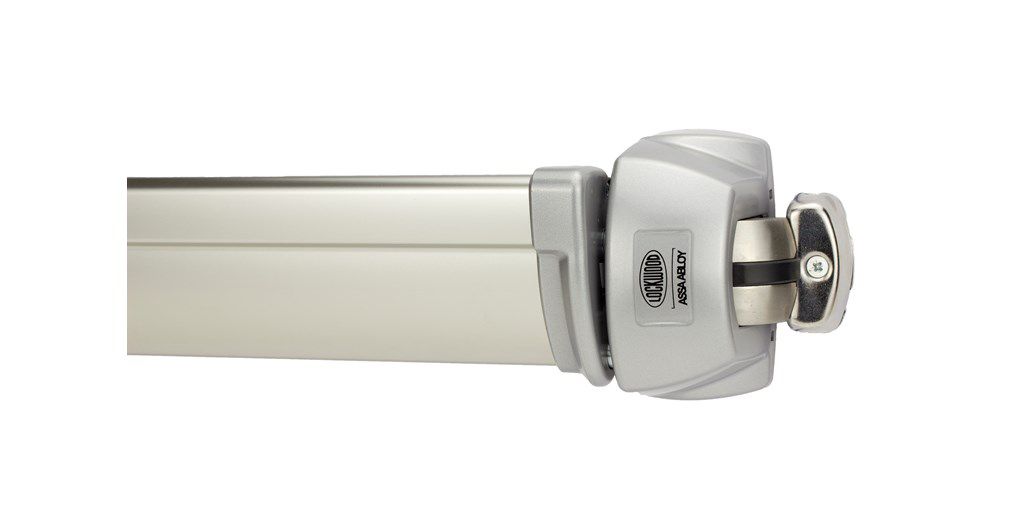

FE100 Series Exit Device Single Point

The FLUID Exit Device combines performance with an inventive axis mechanism and high-security bolt system. Notable features include a high resistance up to 500kg at each latching point, field reversibility, smooth installation, and safe evacuation and compliance with various standards.

The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

Features

Brushed Stainless Steel Bolt
High level of resistance. Up to 500kg to each latching point.
Tested to 1,000,000 cycles
Auxiliary bolt activation from 1mm
Effortless opening < 20N required
Available in both vertical and horizontal latching positions in 2/3 point configurations
Bar can be cut down to 350mm
New fixing bracket and template design reduces installation time by up to 50%
Protect. Evacuating people safely
Secure. High vandal resistance
Optimise. A simple and efficient installation process

Standards and Compliance

Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
Conforms to the standards as setout in CE EN1125 -2008.

ACCESSORIES

Cylinder Dogging

The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position. Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door. The Cylinder Dogging device can be ordered inclusive with the FLUID Exit Device or can be supplied as an optional accessory.

With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times. The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.

*FLUID Exit Device can be ordered with Cylinder Dogging as standard. See Part Numbering guide.

Field Reversible
*Euro Half Cyl sold separately
