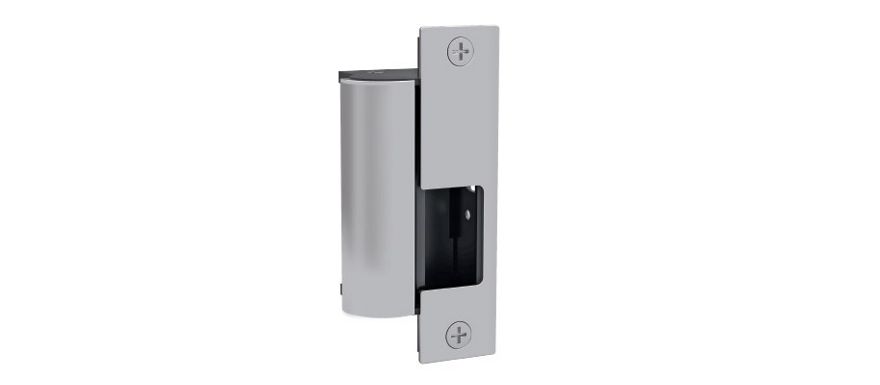

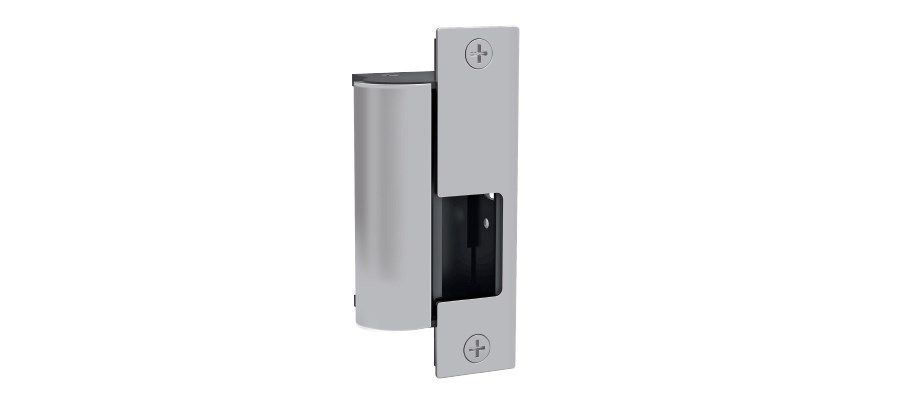

1006 Series

The strongest most versatile electric strike available.

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Frame application

• Metal
• Wood

Electrical

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty
• *Note: DC must be well filtered with ripple less than 1 volt RMS.

Standard Features

• Stainless steel construction
• Tamper resistant
• Static strength 2,500 lbs. (fail secure)
• Dynamic strength 350 ft-lbs. (fail secure)
• Endurance 1,000,000 cycles
• Fail secure (standard)
• Dual voltage 12 or 24VDC continuous duty
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Five year limited warranty

Optional Features

• Fail Safe
• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor
• 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
  *Complete Pacs are only available in the 630 finish
