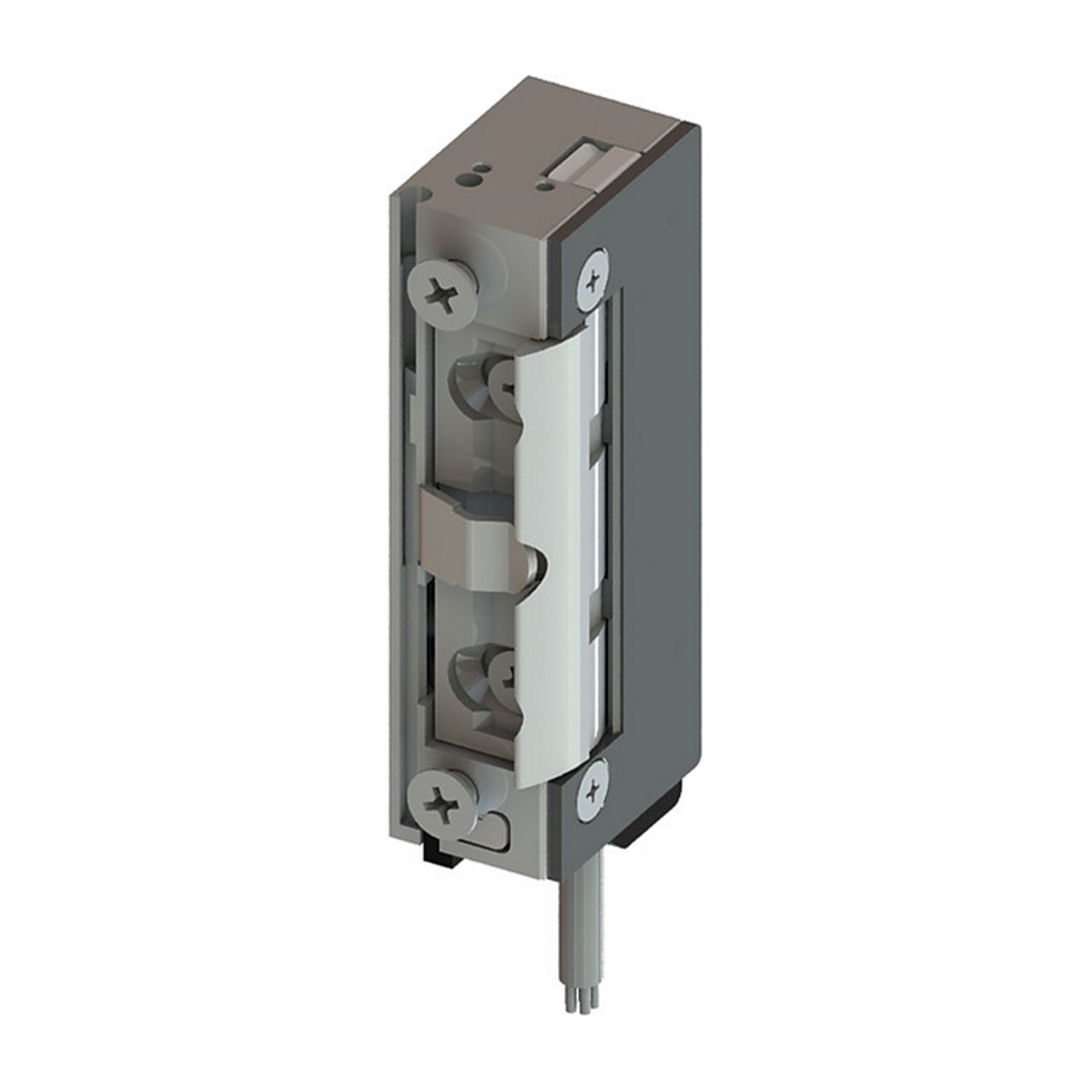

Product description

Model with monitoring contact, actuated by the latch bolt.

Overview of Advantages

• Water-proof for use outdoors
• Protection rating IP54 for the electrical components
• Connecting cable 300 mm length
• Equipped with bipolar protective diodes
• Radius keep, FaFix®, adjustable by 3 mm
• Compatible with current mortise locks
• Striking plates with 2 position settings available
• Symmetrical design. DIN left/right as well as horizontal applicable

Scope of delivery

• 1 piece electric strike

Note

Not an authorized locking system for doors along escape and rescue routes
