Escape door locking system 352M.85

Product description

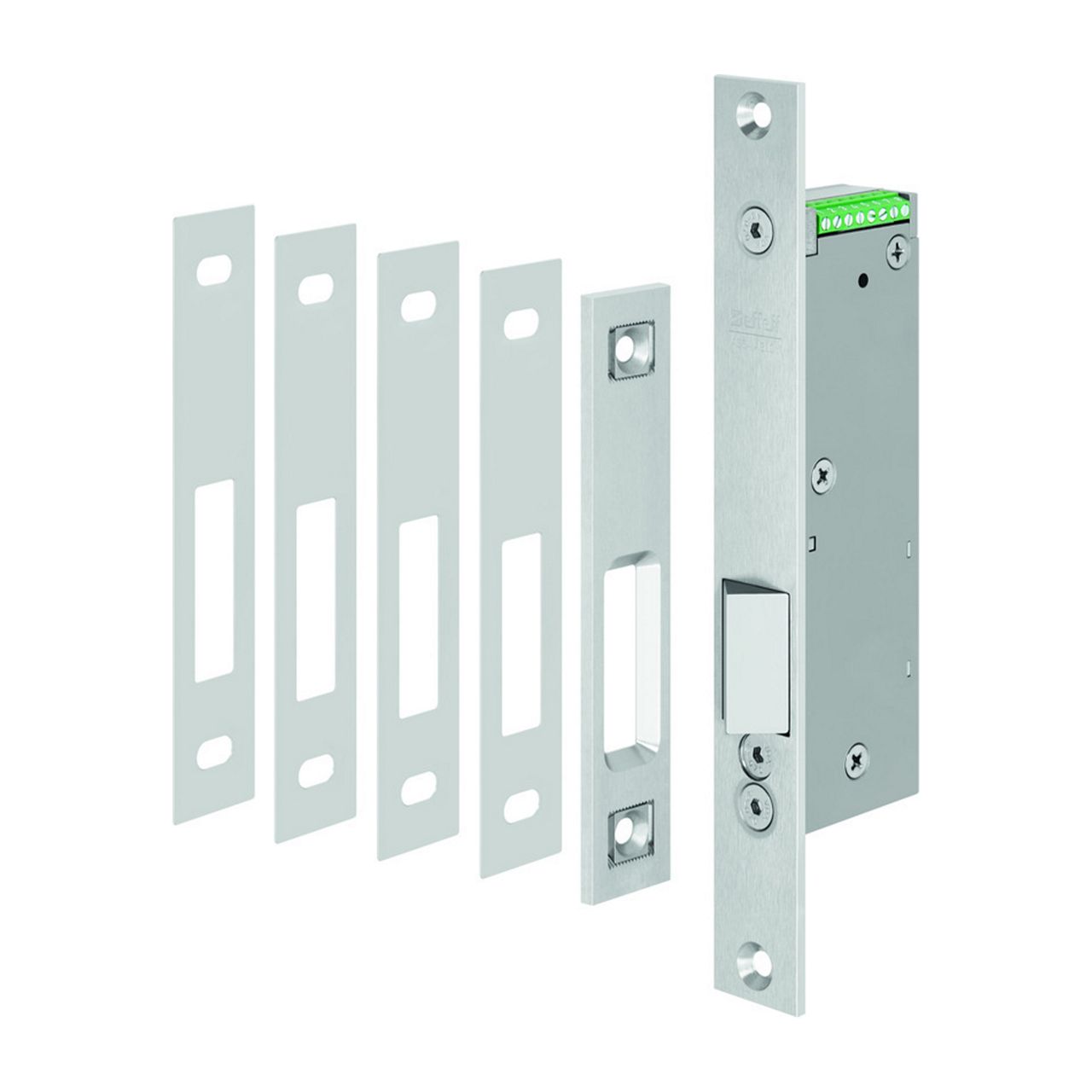

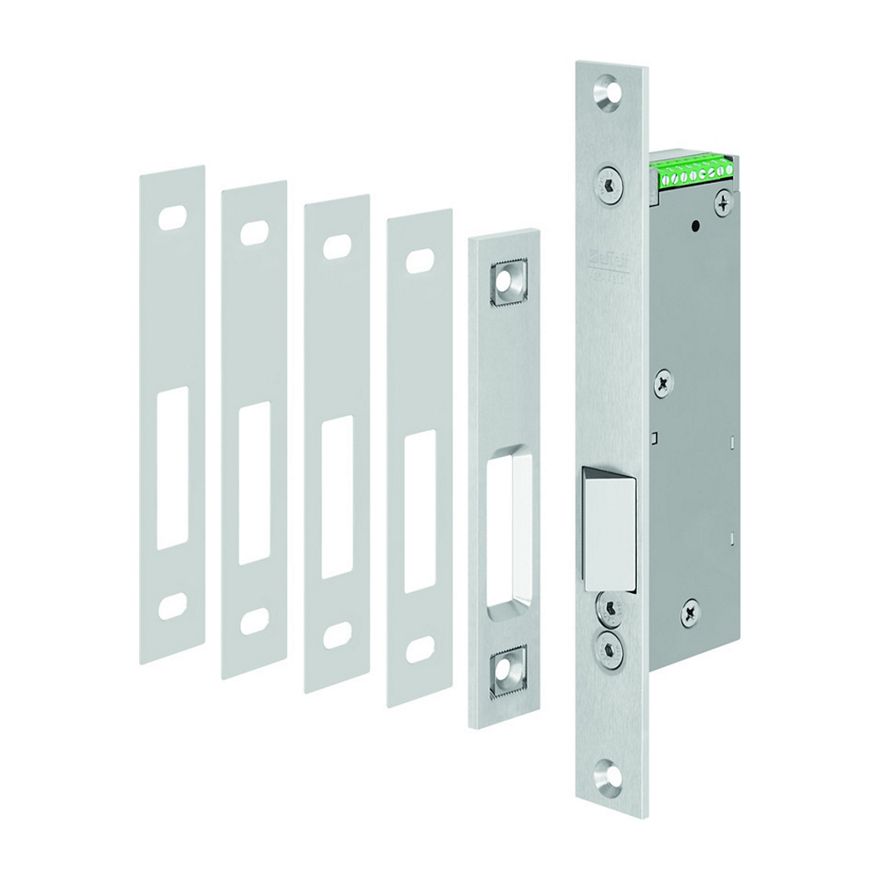

Version with strike plate, counterpart (VarioFix®) and spacer plates

Mainly suitable for use in metal frames/metal doors

Overview of Advantages

• Very quiet locking and unlocking, silent during permanent release
• The 352M escape-door locking system is especially designed as an additional locking system to secure doors along escape routes
• Suitable as an additional locking element for installation in fire doors
• Example for further usage options: double action swing door, revolving doors, interlocking doors, special doors
• Universal installation position, vertical and horizontal in the door frame or door leaf
• Holding force of 5000 N
• Safe unlocking under pre-load of up to 5000 N
• 12V DC to 24V DC multi-voltage, controlled DC voltage
• Monitoring contact and armature contact integrated
• Compatible for installation with models 351U and 351M
• VarioFix counterpart +/-2mm adjustable

Scope of delivery

Supply includes square-cut strike plate, square-cut counterpart (VarioFix) and 4 square-cut spacer plates
