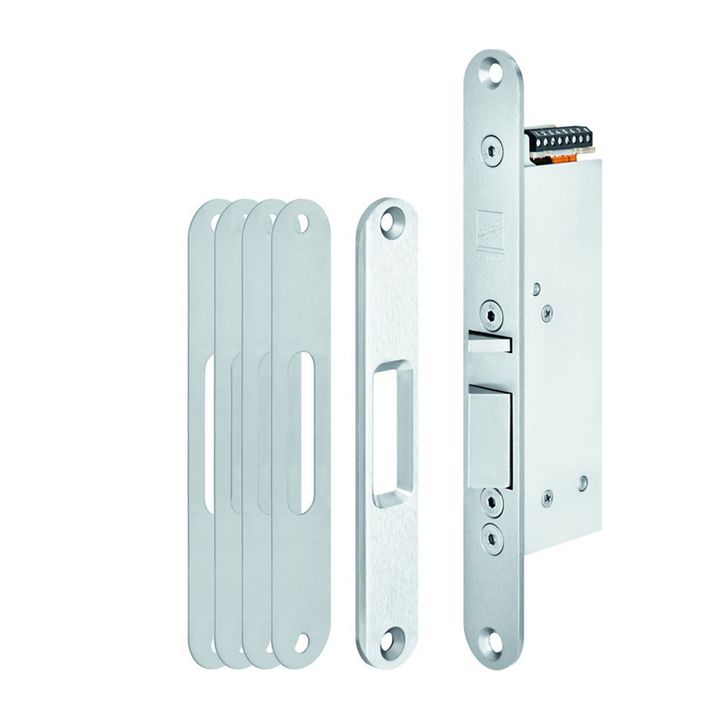

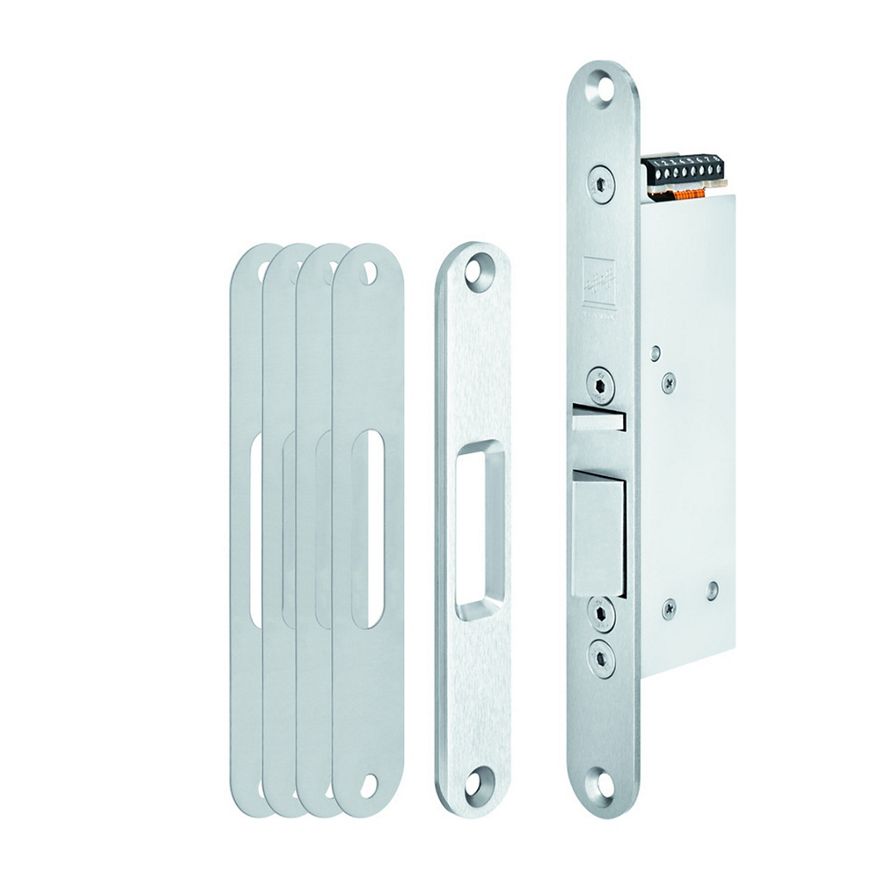

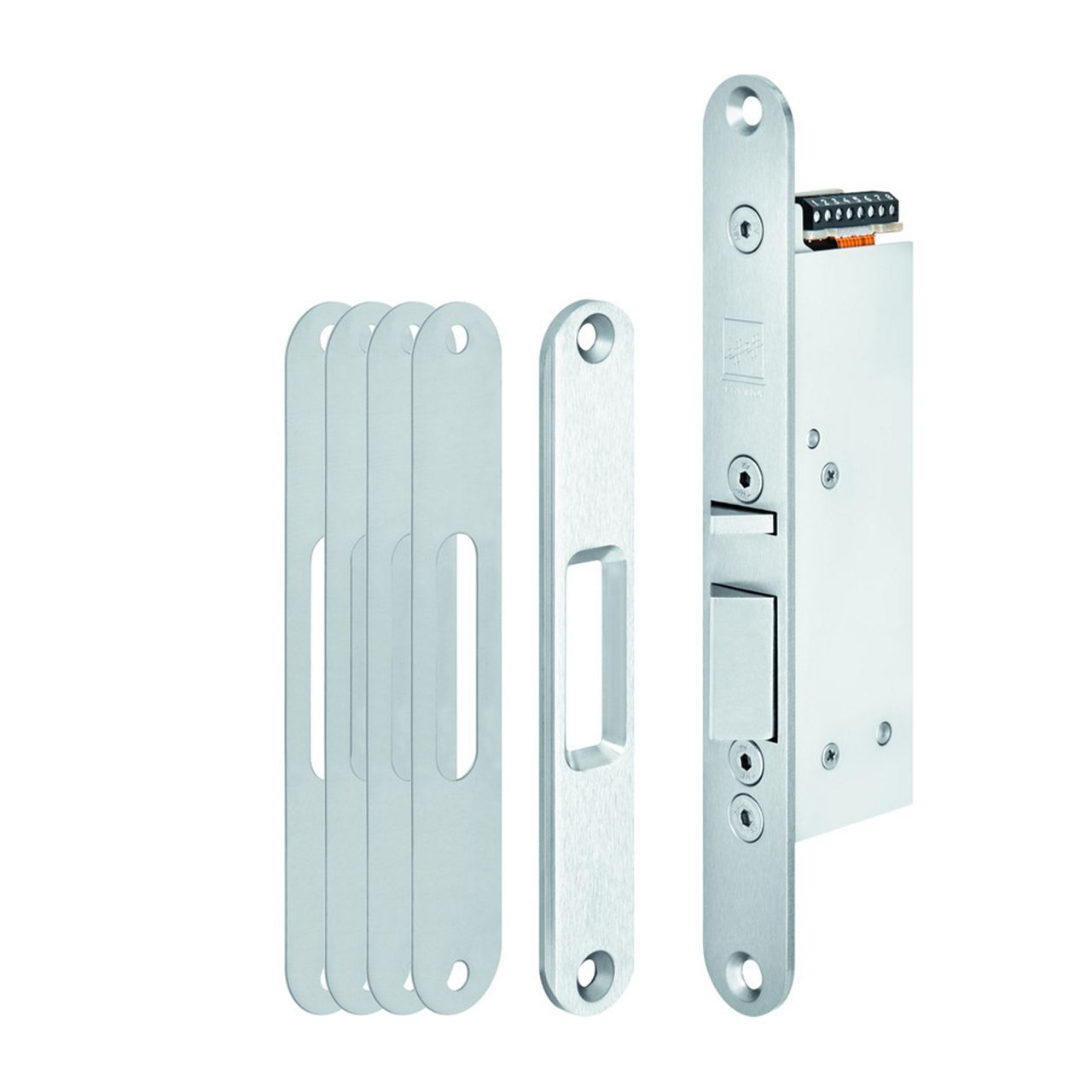

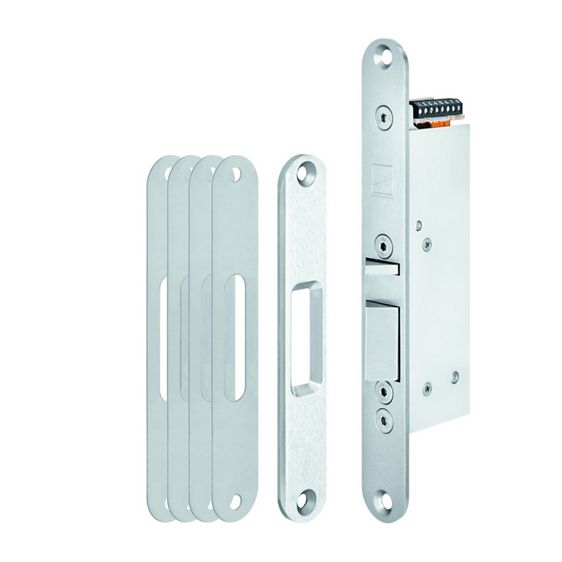

Electric strike 351U80-58135
Product description
The electric strike works according to the fail-safe unlocked operating principle and is designed for the locking of swing and double swing doors. Due to the safe unlocking under pre-load this electric strike is used for doors with escape route requirements, in security gate systems or for soundproof doors. It is suitable for horizontal or vertical installation in the door frame or in the door leaf.
Overview of Advantages
- Suitable for double-action swing doors and single-action swing doors, for interlocking doors and special doors
- Suitable for locking systems according to EltVTR
- Suitable as a supplementary locking system for installation in fire doors
- Vertical and horizontal universal installation position in the door frame or in the door leaf
- Holding force of 5000 N
- Reliable unlocking under preload
- Monitoring contact and armature contact integrated
- Sturdy design for demanding requirements
Note
Suitable for fire doors according to British Standard BS476
