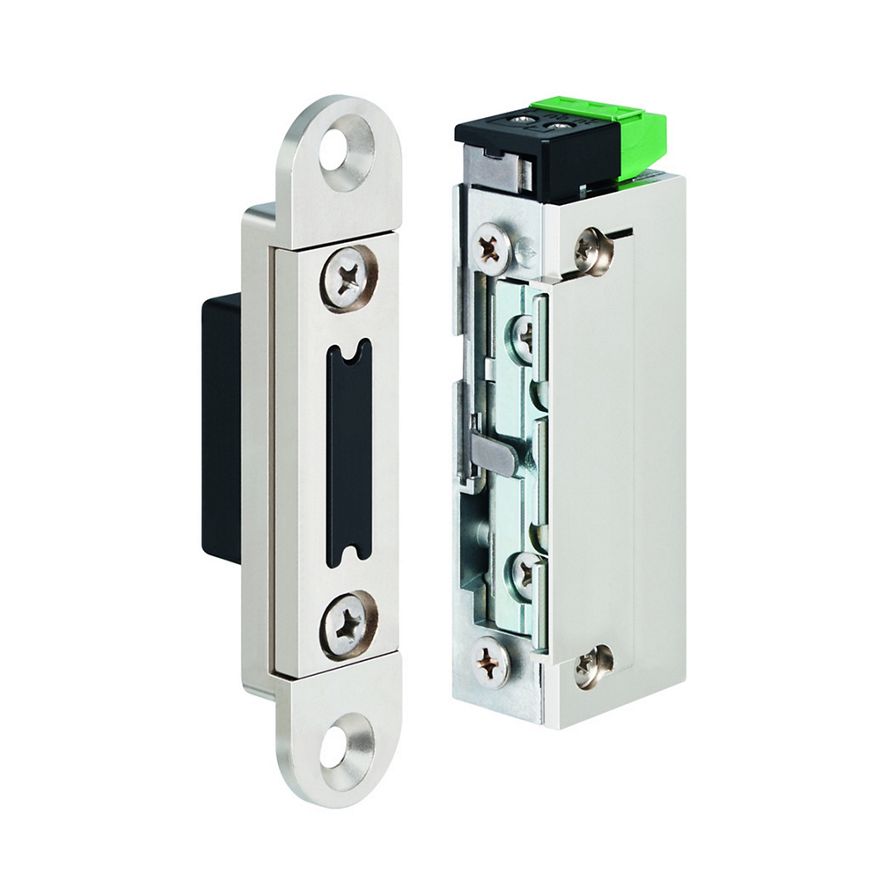

Supplementary locking system 9318RR

Product description

Version with magnet bolt counterpart, with fail-locked strike 118TQ53

Overview of Advantages

• Latch insertion on the door frame removed
• Visually attractive, concealed installation, magnet bolt is retracted when door open
• Low opening force due to weak latch bolt spring
• No closing force due to magnet bolt
• Quiet locking and unlocking
• The supplementary locking system 9318RR is designed as a supplementary locking system for versatile applications for the locking of doors
• Example for other usage options: Office doors, laboratory doors, interlocks, wet cells in hospitals, special doors
• Universal installation position, vertical and horizontal
• Compatible with model 9314
• Load cycles for factory test: 1,000,000

Scope of delivery

Delivery with magnet bolt counterpart and fail-locked strike 118TQ63 with monitoring contact and stainless steel steel striking plate no. 34G
