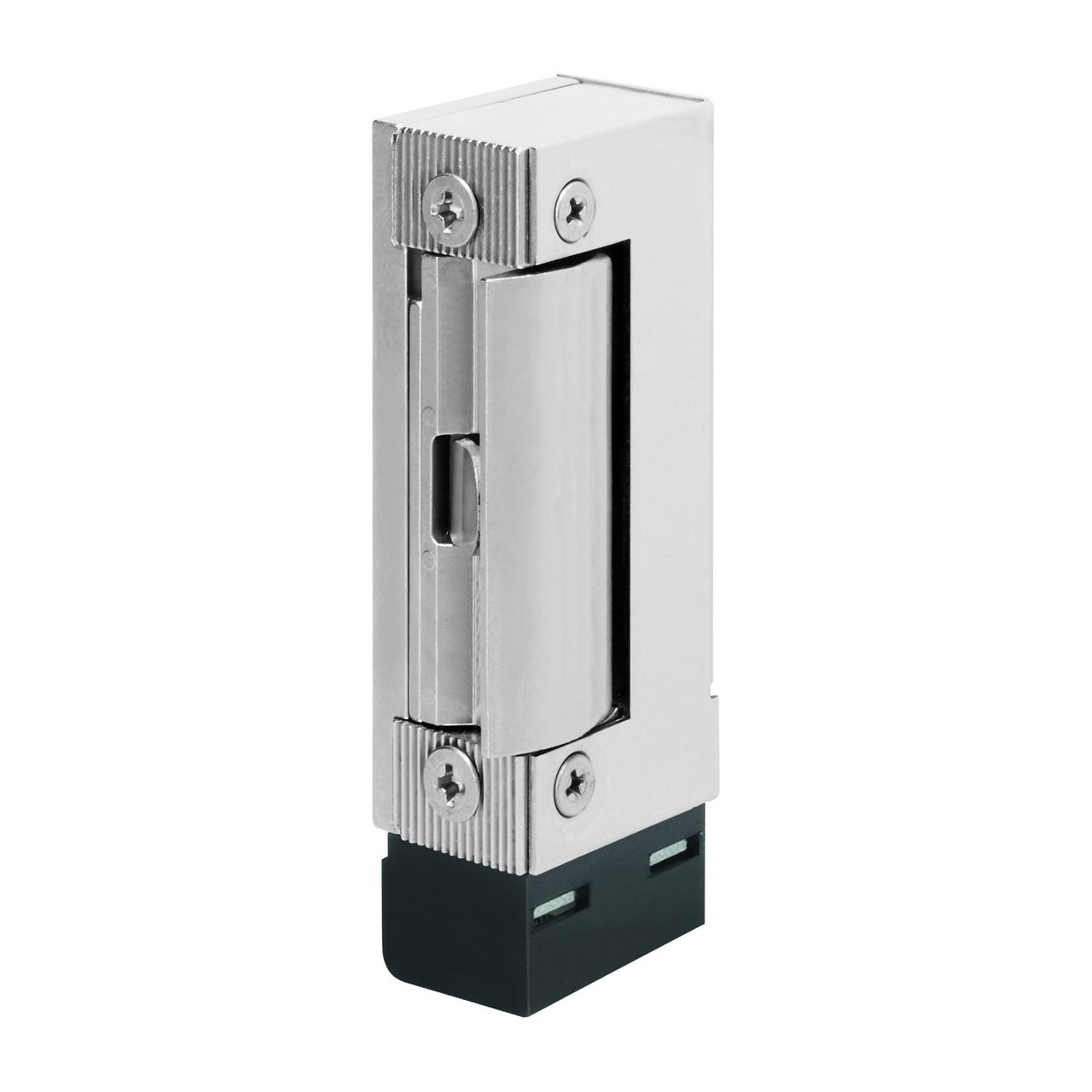

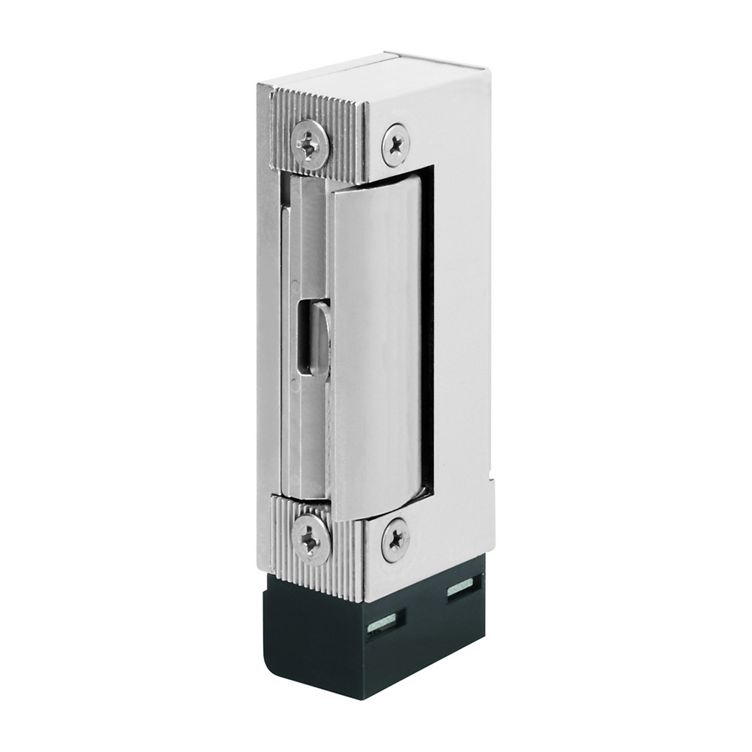

Escape door strike 332.80F (RRAKRR)

Product description

The 332® fail-unlocked electric strike from effeff, designed especially for locking doors along escape routes, is considered the world's smallest escape door strike due to its small dimensions.

The compact design of the effeff Escape Door Strike 332® is comparable with a standard electric strike, thus guaranteeing fast, simple installation in a wide variety of different profiles and frames.

Overview of Advantages

• Radius latch
• Small symmetrical construction shape
• Min. 2000 N, max. 3000 N holding force in accordance with prEN 13637
• Unlocking under pre-load with 100% holding force
• Monitoring contact as microswitch and armature contact as light barrier
• DL/DR and horizontal universal installation position
• Low current consumption 100 mA (24 V), 200 mA (12 V)

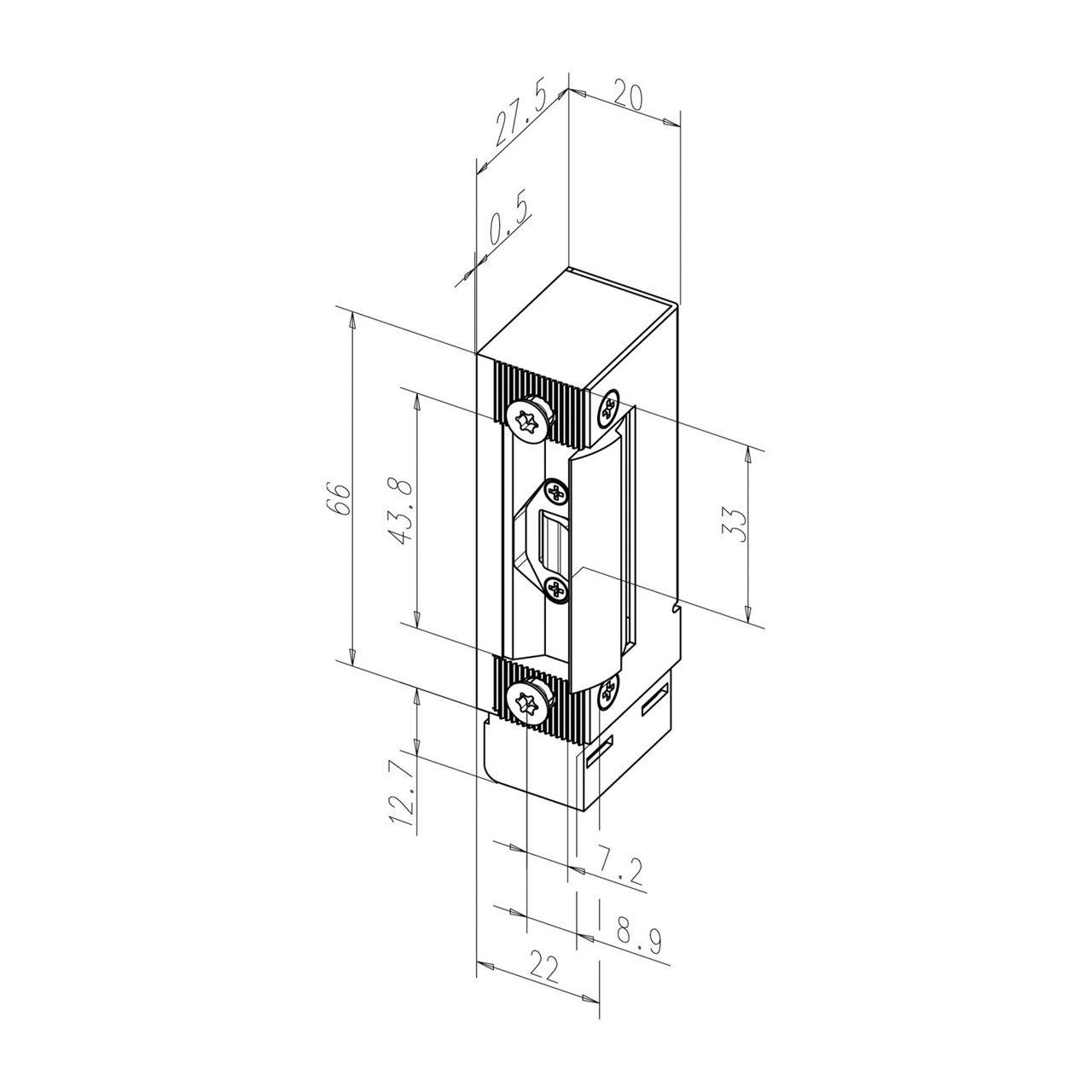

• Compact fitting dimensions
• Adjustable via Fix grooves in housing
• Approved for installation as secondary locking system on fire doors
