Escape door strike 332.238 ProFix 2 (RRAKRR)

Product description

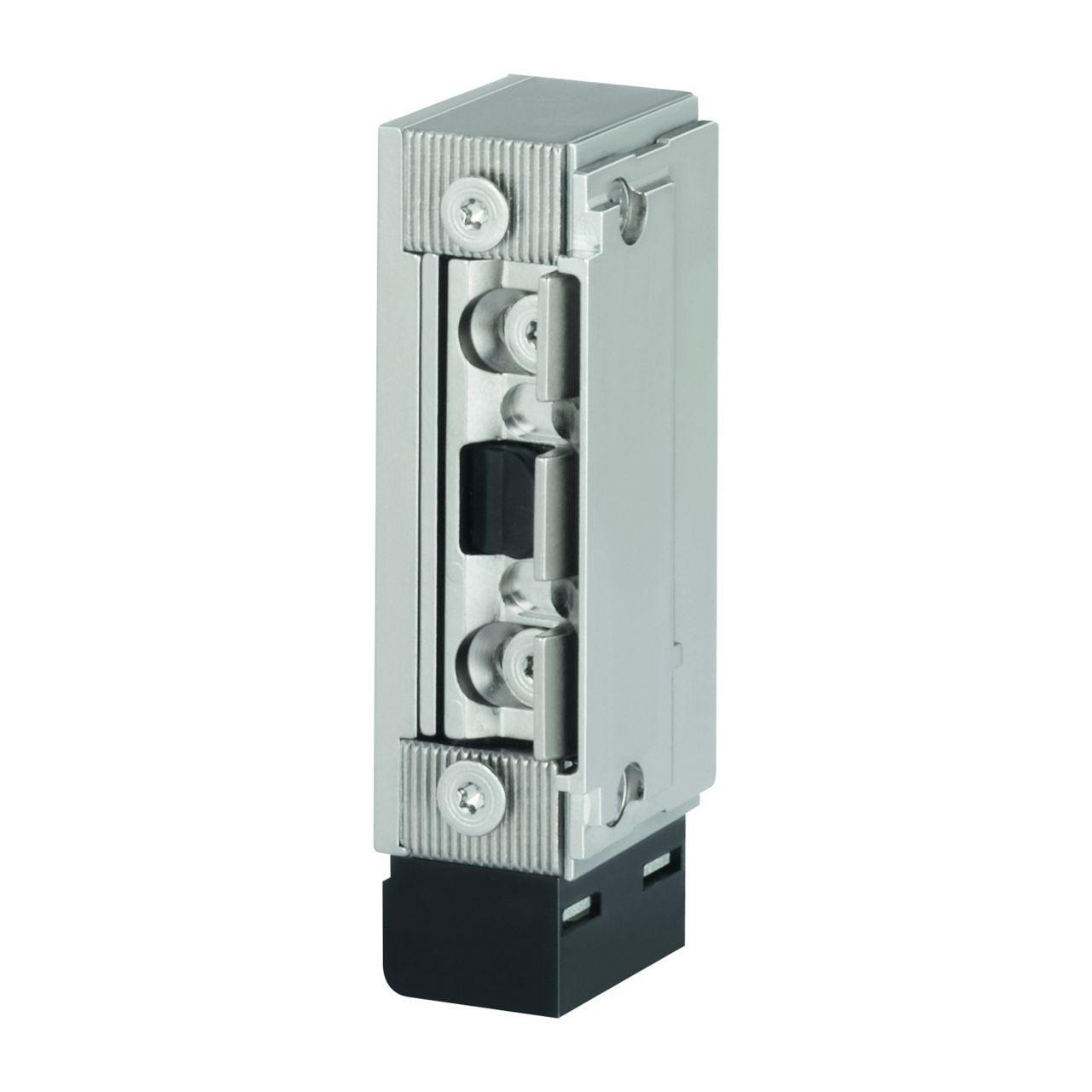

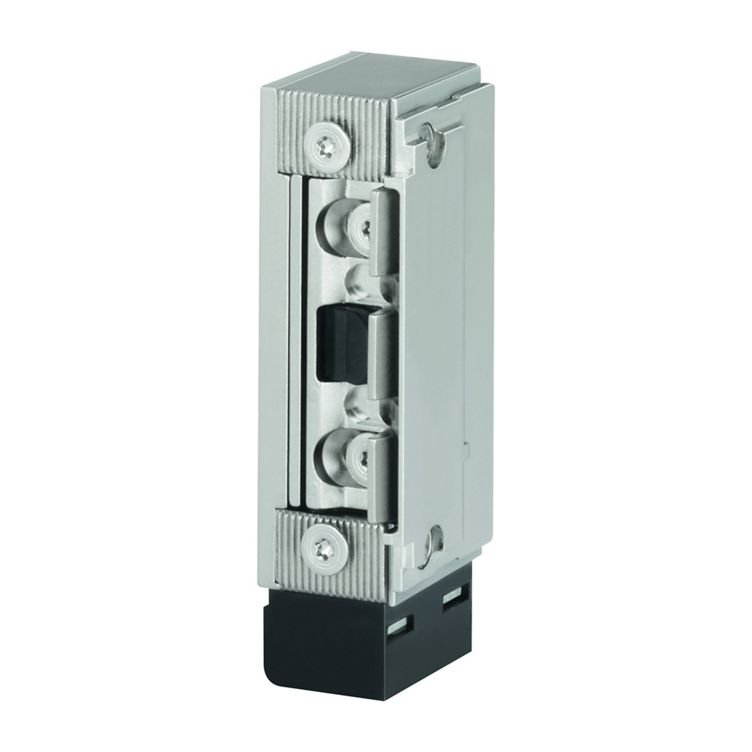

The compact construction form of the effeff 332.238 escape door strike allows rapid, uncomplicated mounting in a wide variety of profiles and door frames

Overview of Advantages

• Radius latch
• Small symmetrical construction shape
• Min. 2000 N, max. 3000 N holding force in accordance with prEN 13637
• Unlocking under pre-load with 100% holding force
• Monitoring contact is potential-free and armature contact is non-isolated *
• DL/DR and horizontal universal installation position

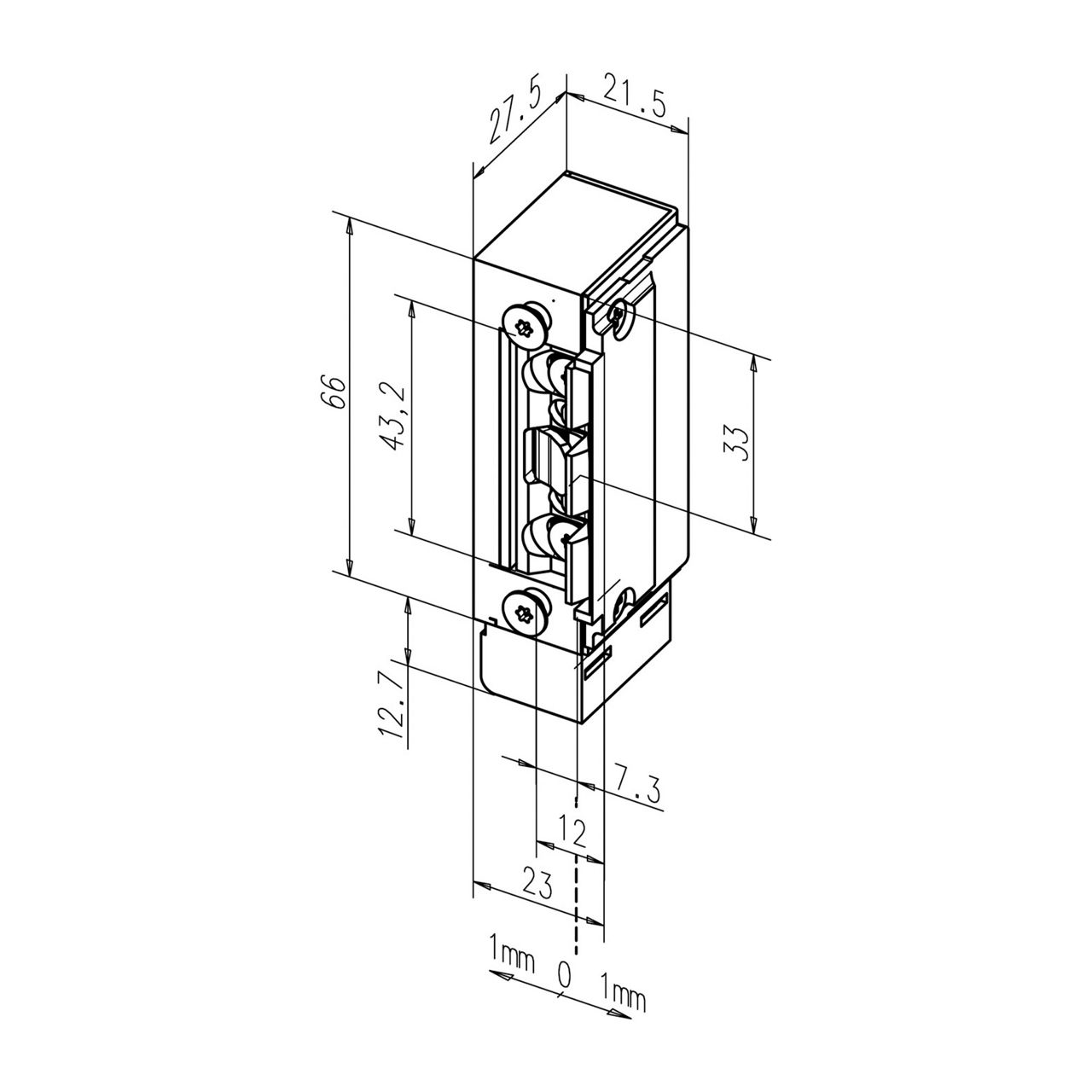

• Compact fitting dimensions
• Adjustable FaFix® latch: 2 mm adjustment range with 0.5 mm increments
• Compatible with ProFix® 2 strike plates
• Monitoring contact integrated in the housing
• Monitoring flap moves together with the FaFix® screw-on attachment, i.e. the switching point always remains the same
• With integrated ProFix2 cover latch bolt guide to create a continuous seal layer between the door leaf and door frame to optimise cold/heat insulation and sound insulation and improve the overall visual appearance of the door

Note

• Can only be used as a supplementary locking device on fire doors

* Coupling Relay 7480 is required for parallel operation.
