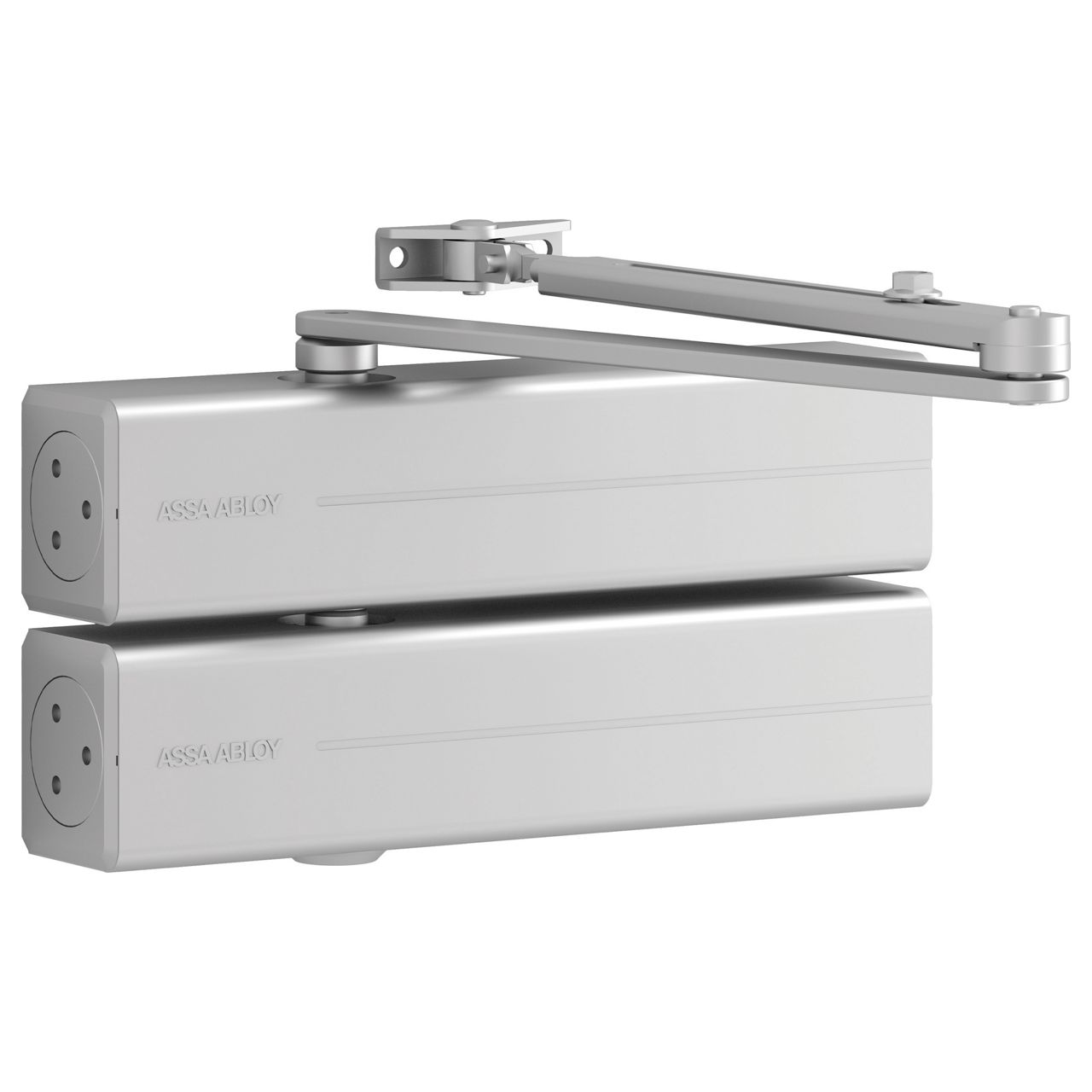

DC300 tandem rod-type door closer

Rack and pinion closer with link arm L190

Product description

• Rack and pinion closer with link arm L190
• Two door closer are interlinked for extra wide and heavy doors
• Double closing torque of DC300, EN size >7
• For single action doors up to 1800 mm wide

Overview of Advantages

• Tandem mounting plate A121 generally required
• Can be used for left and right-handed doors
• Can only be used with a link arm
• Axis height adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Effective backcheck and latching speed range adjustable
• Large range of applications
• Standard colours: silver EV1

Note
Tandem consists of (please order accordingly):

• 2x DC300, EN size 3-6, silver EV1
• 1x mounting plate A121, silver EV1
• 1x link arm L190, silver EV1
