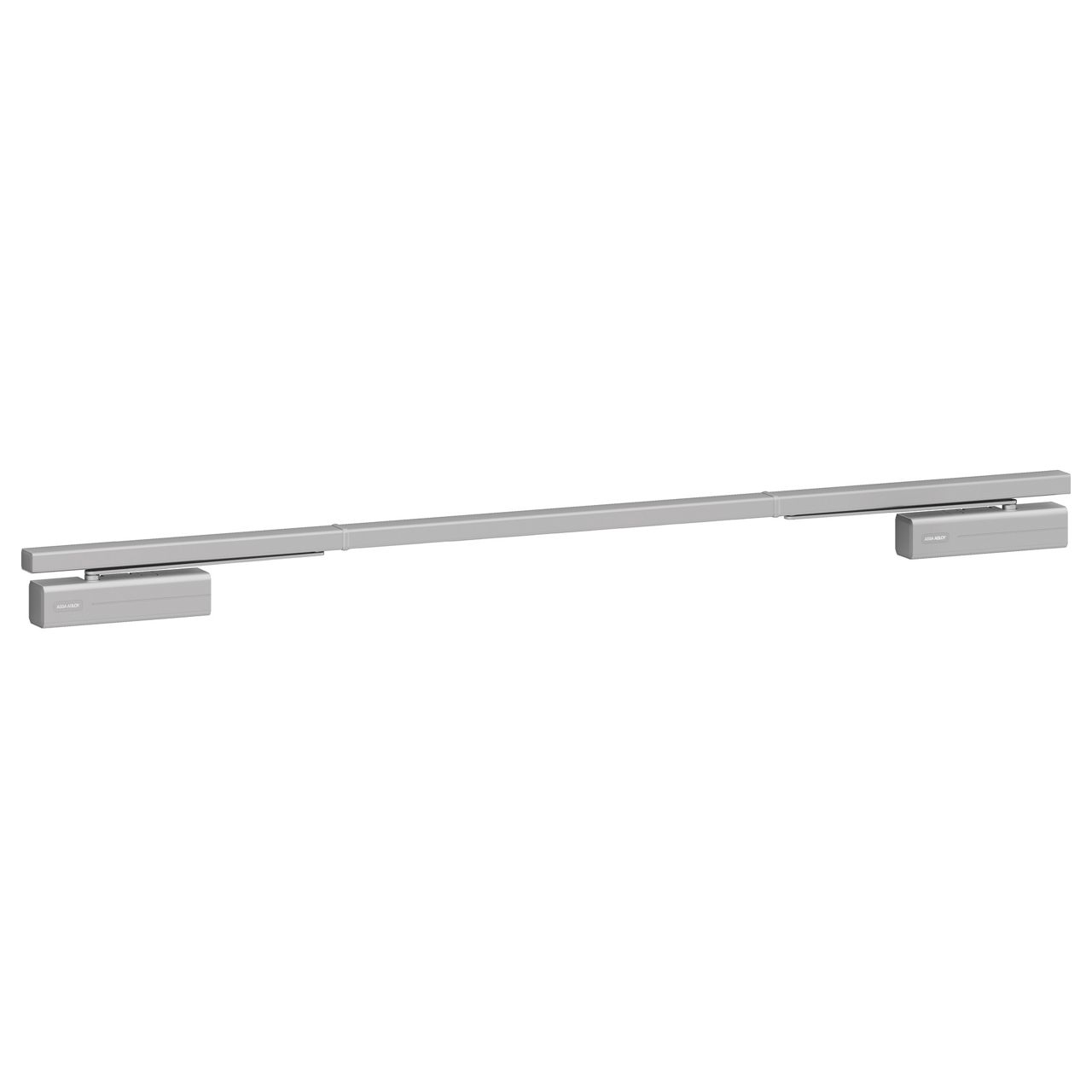

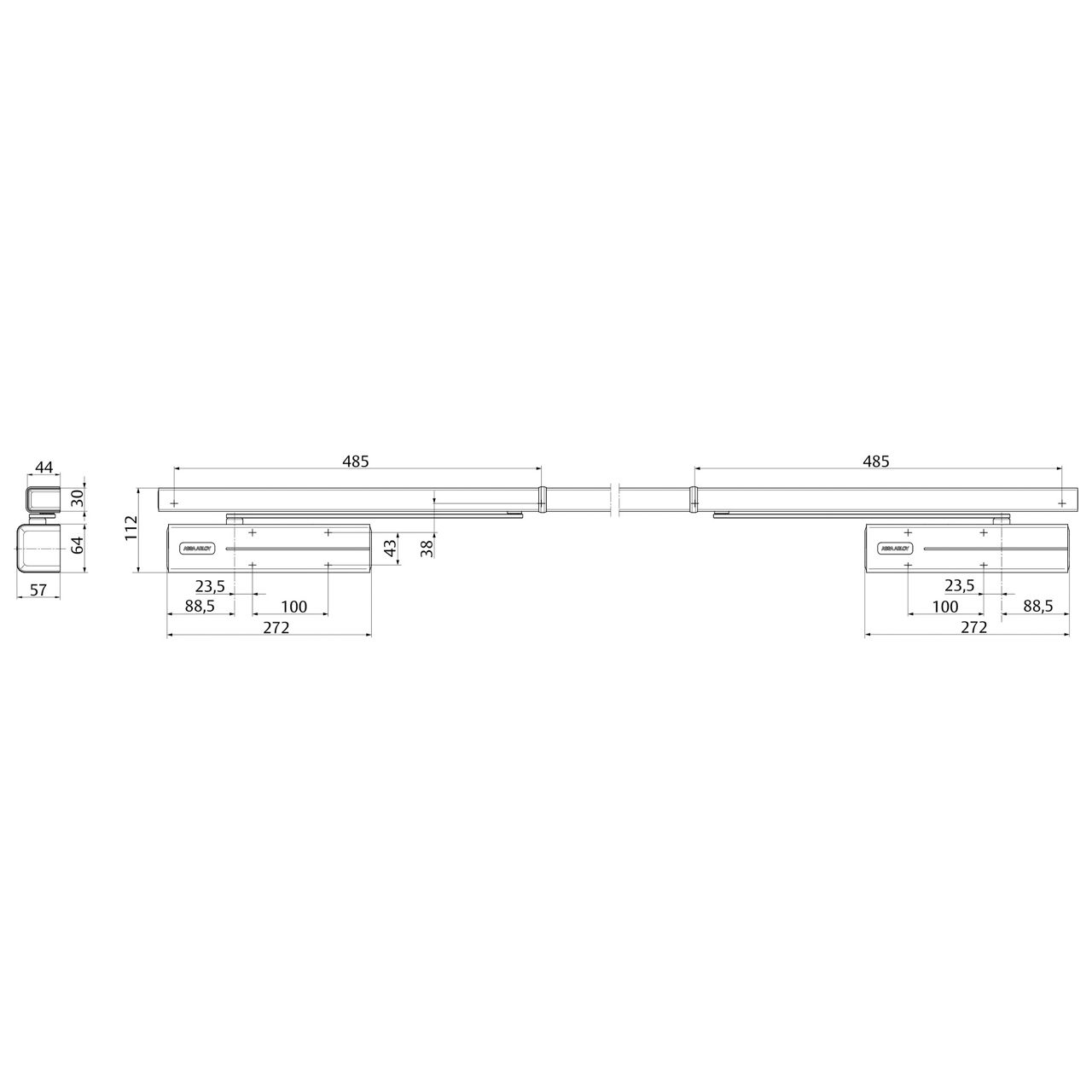

G-CO guide rail for DC700 door closer

Door closer with Cam-Motion® technology with integrated mechanical door coordinator

Product description

• Door closer with Cam-Motion® technology with integrated mechanical door coordinator
• Certified in compliance with EN 1158, size 3-6
• Mechanical door coordinator in continuous guide rail
• All components fully integrated into continuous guide rail
• Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
• Meets the requirements of DIN SPEC 1104 / CEN15894
• For fire and smoke protection doors with a hinge distance of 1350 mm - 2500 mm (3200 mm)

Overview of Advantages

• Door coordinator based on wedge system
• Can be used for left and right-handed doors
• For standard mounting on hinge side
• Same drilling template as standard guide rails
• Guide rail height adjustable by 2 mm for tolerance
• Axis continuously height adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Variable adjustable closing force
• Thermodynamic valves for consistent performance
• Effective backcheck and latching speed range adjustable
• Standard colours: silver EV1, white similar to RAL9016, stainless steel design
• Customised finishes available on request

Note

• Guide rail G-CO
• Facts for door closer see DC700
