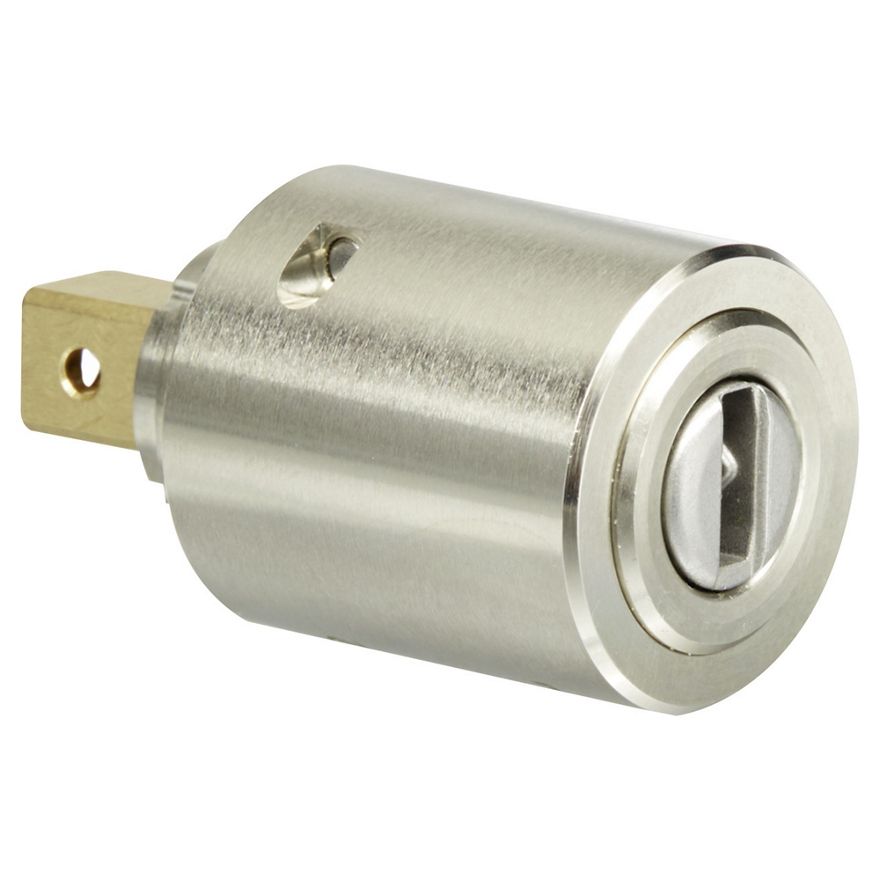

Mounting cylinder eCLIQ NC45

Product description

• Available as electronical version (V=)
• Standard finish, satin nickel-plated (OF=MV)
• Special cylinder for application in various commercial rotary rod locks with 7x7 mm spindle follower. Suited for FERMA commercial rotary rod lock (KESO part no. 13.600/13.605), TRIO II and TERZA and rod lock (KESO part no. 43.081) with mounting plate.
• 22 mm diameter
• Key rotation stroke: 360°
• Square 7x7 mm
• Maintenance-free for up to 200,000 cycles
• Splash-proof IP54
• Dust and rain cover available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 mounting cylinder
