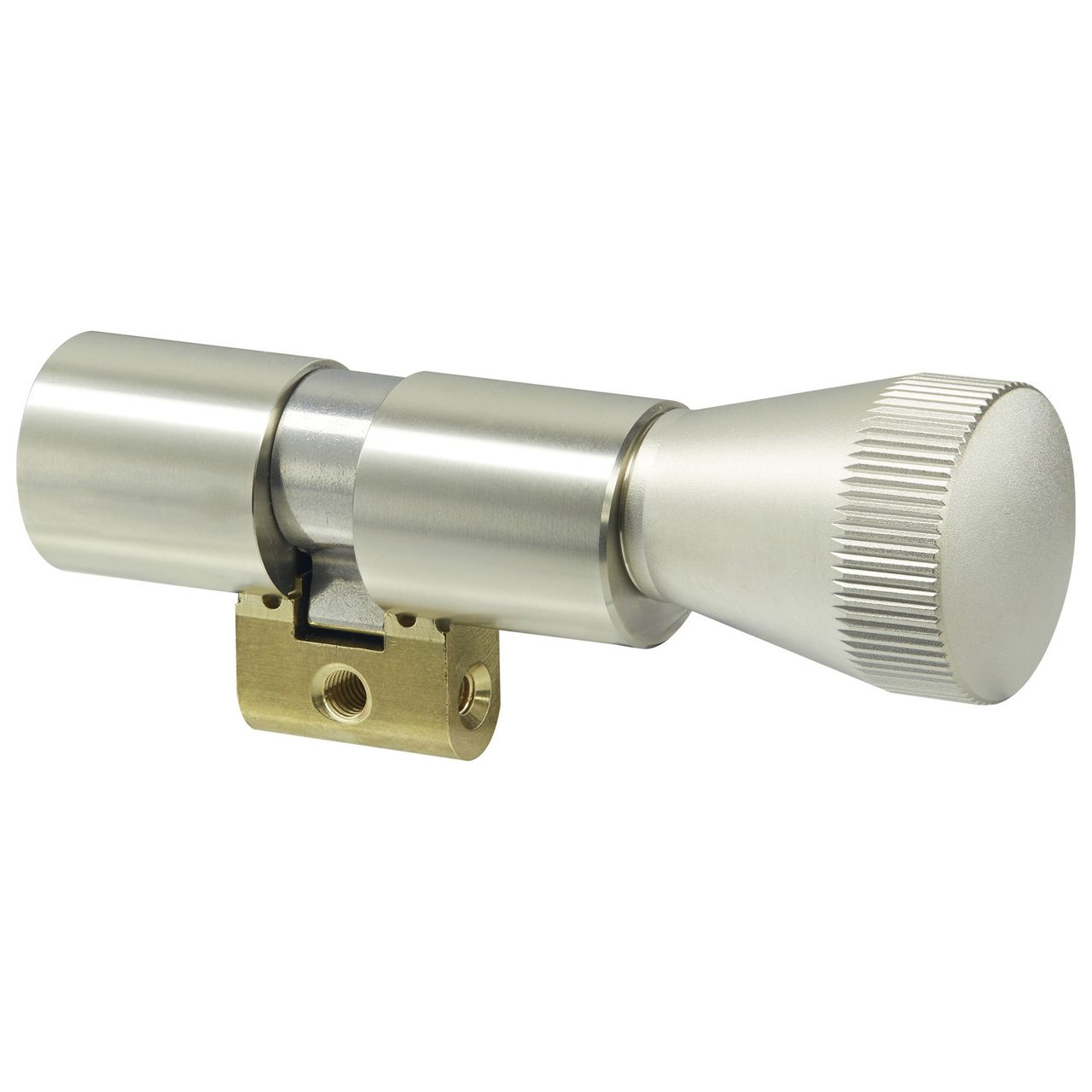

N484,KNF=2

Product description

  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)
  • Standard knob colour satin nickel-plated (KNF=2MV)
  • Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
  • Standard locking cam position (SST=30°); differing locking bit position available
  • Optionally available with anti drilling protection class 2 (AB=2)
  • Cam made of break-proof, corrosion-resistant stainless steel
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover available (SUR=1) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

  • 1 cylinder fixing screw M5 x 85 mm

Ordering Information

  • The knob is always on the inside of the cylinder (B)
