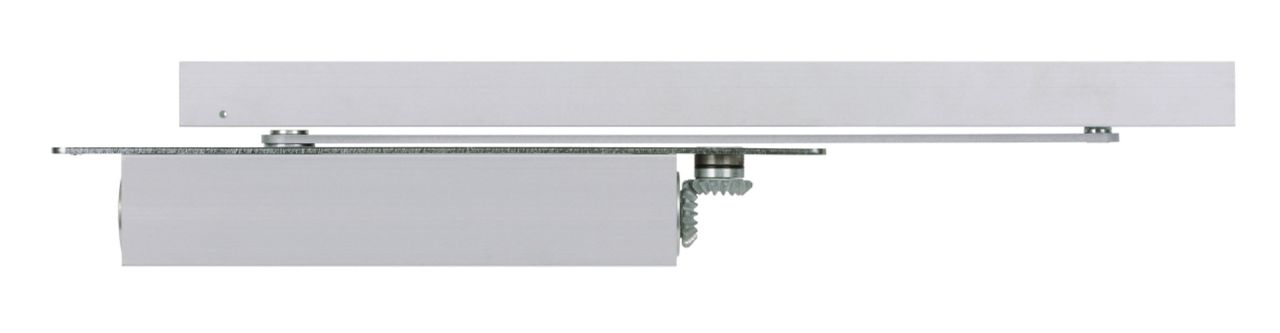

DC860 with G880 - Door Closer - Concealed

DC860 with G880 Cam-Motion®

Description:

• Concealed door closer with Cam-Motion^® technology and guide rail with electromechanical hold open device for single leaf doors
• Guide rail is in compliance with EN1155, Size EN3-6
• Fulfil barrier-free building requirements (DDA/ CEN TR 15894)
• Hold-open angle continuously adjustable between 80°- 120°
• Suitable for fire and smoke protection doors
• For single action doors up to 1250mm wide

Characteristics:

• Concealed electromechanical hold-open device
• Continuously adjustable holding force
• Hold-open angle continuously adjustable between 80°- 120°
• Can be used for left and right-handed doors
• Closing speed and latching speed adjustable from top via regulating valves
• Built-in back-check
• Thermodynamic valves for consistent performance
• Large range of applications
• Versions with 4mm and 8mm spindle extensions
• Standard colours: Silver EV1
• Customized finishes available on request
