BH777 Series

Full Mortise Type

Description:

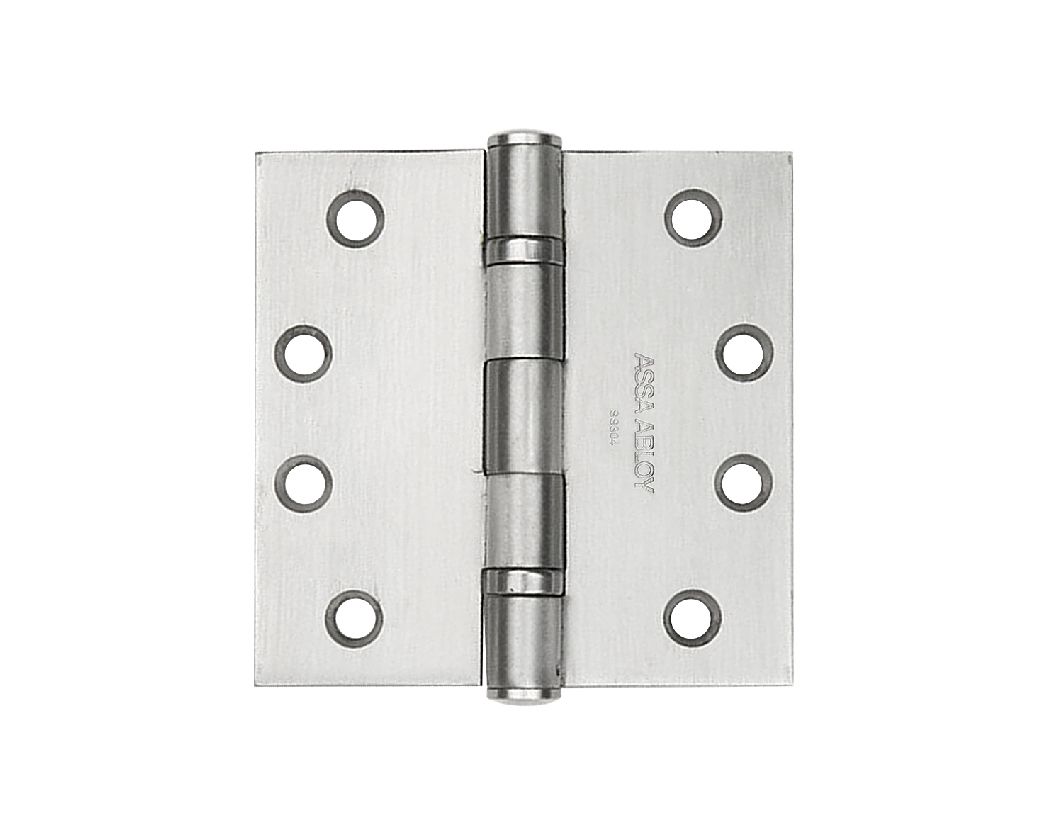

ASSA ABLOY Full Mortise – Ball bearing butt hinges are made of high grade stainless steel in accordance with ANSI/BHMA standards and are suitable for medium to high frequency doors in various occupancy types.

Technical Details:



  • Areas of Application: Wooden or metal doors with wood or metal frames
  • Door Dimensions: Refer our hinge selection chart to a certain suitability to various door dimensions
  • Material: Stainless Steel
  • Knuckles: 5
  • Bearing: 2 Ball Bearing
  • Finish: 630 ,626 (other finishes available upon request)
  • Options: Hospital Tip, Non Removable Pin



Certiffications:
  • ANSI/BHMA: Tested and certified to the requirements of ANSI/BHMA A156.1 Butts and Hinges Grade 2



Specifications:

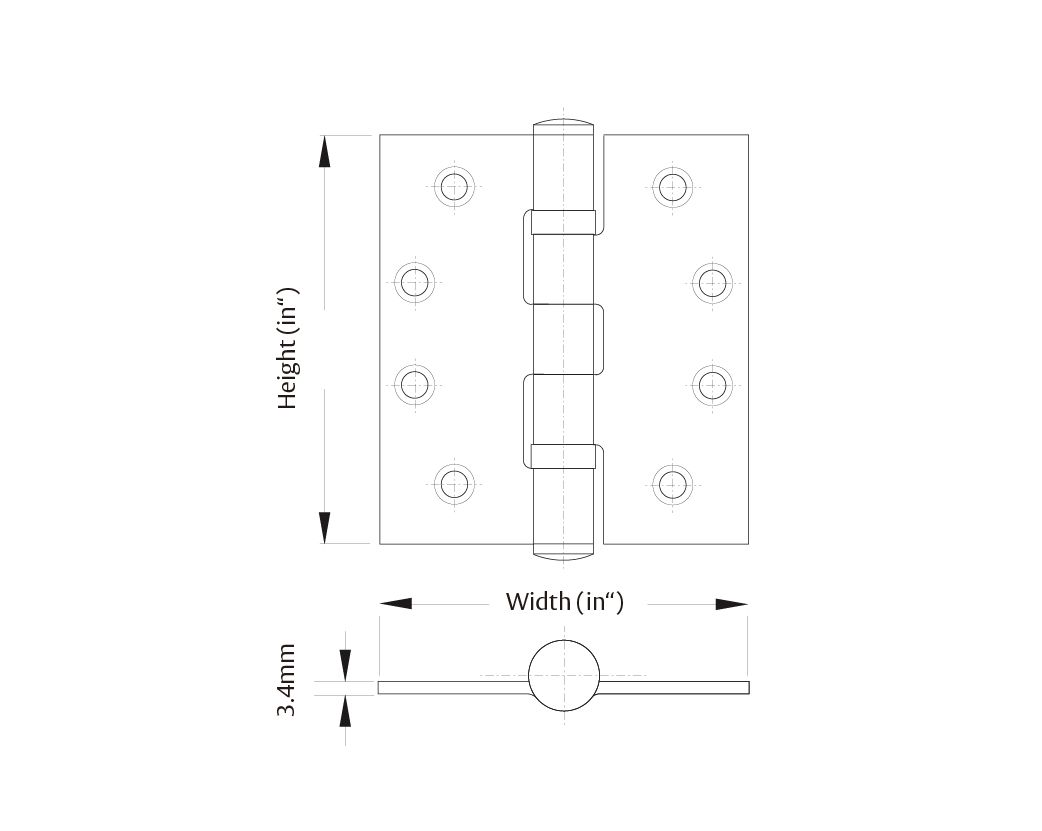

All hinges shall be of the ball bearing type 5 knuckles with 2 Ball Bearings and certified to ANSI/BHMA A156.1 Grade 2 made from highest grade of 3.4mm thick SS 304 Grade Stainless Steel and must be suitable for both metal and wooden doors.

Please check the main Door Hinges page for How to Order instructions.
