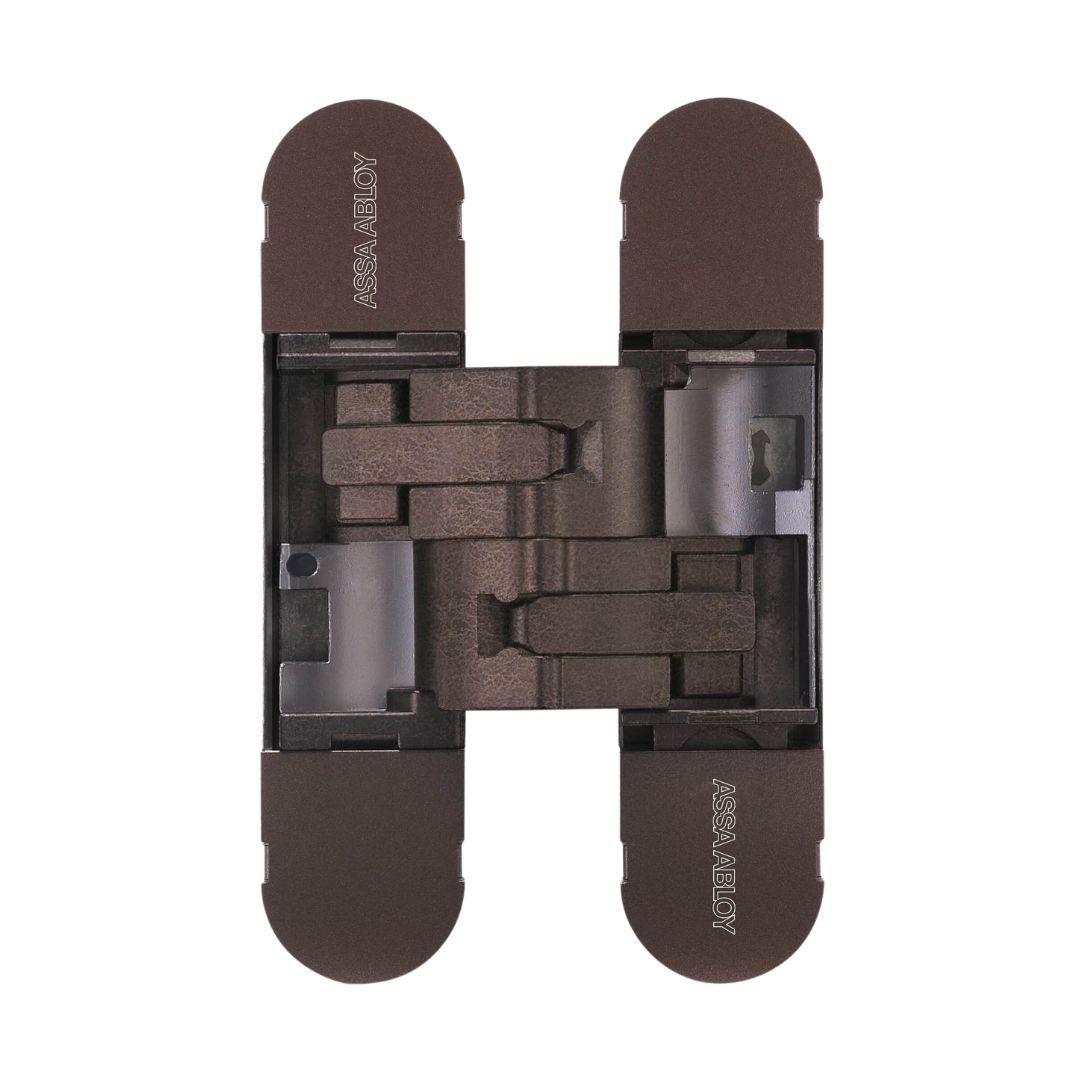

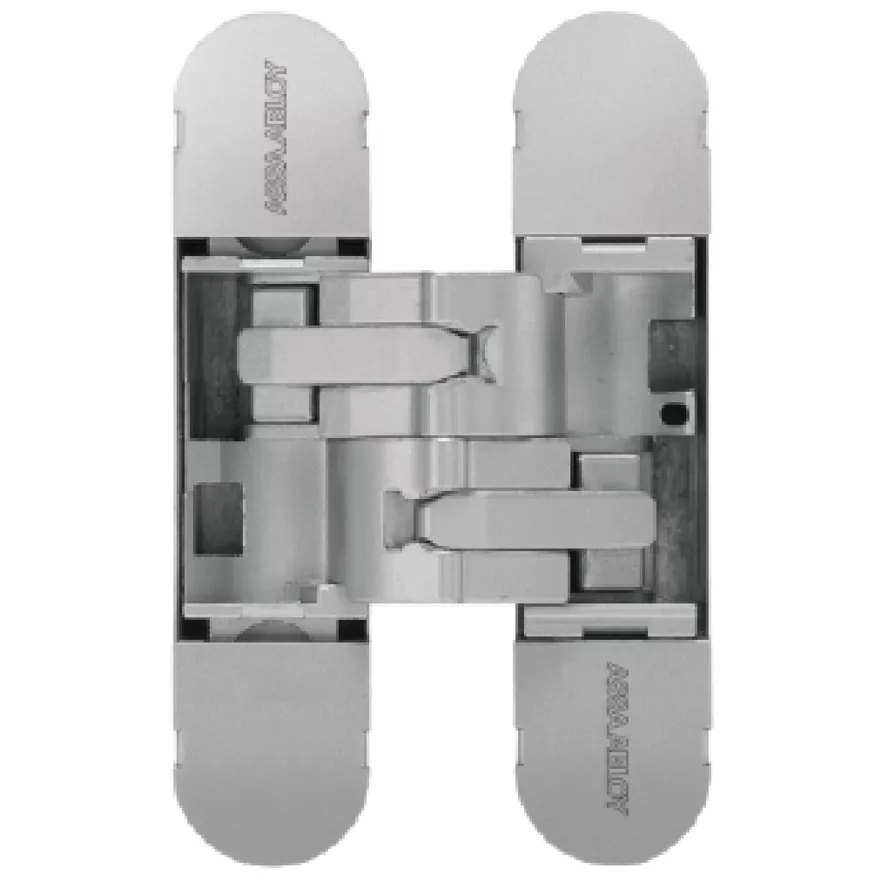

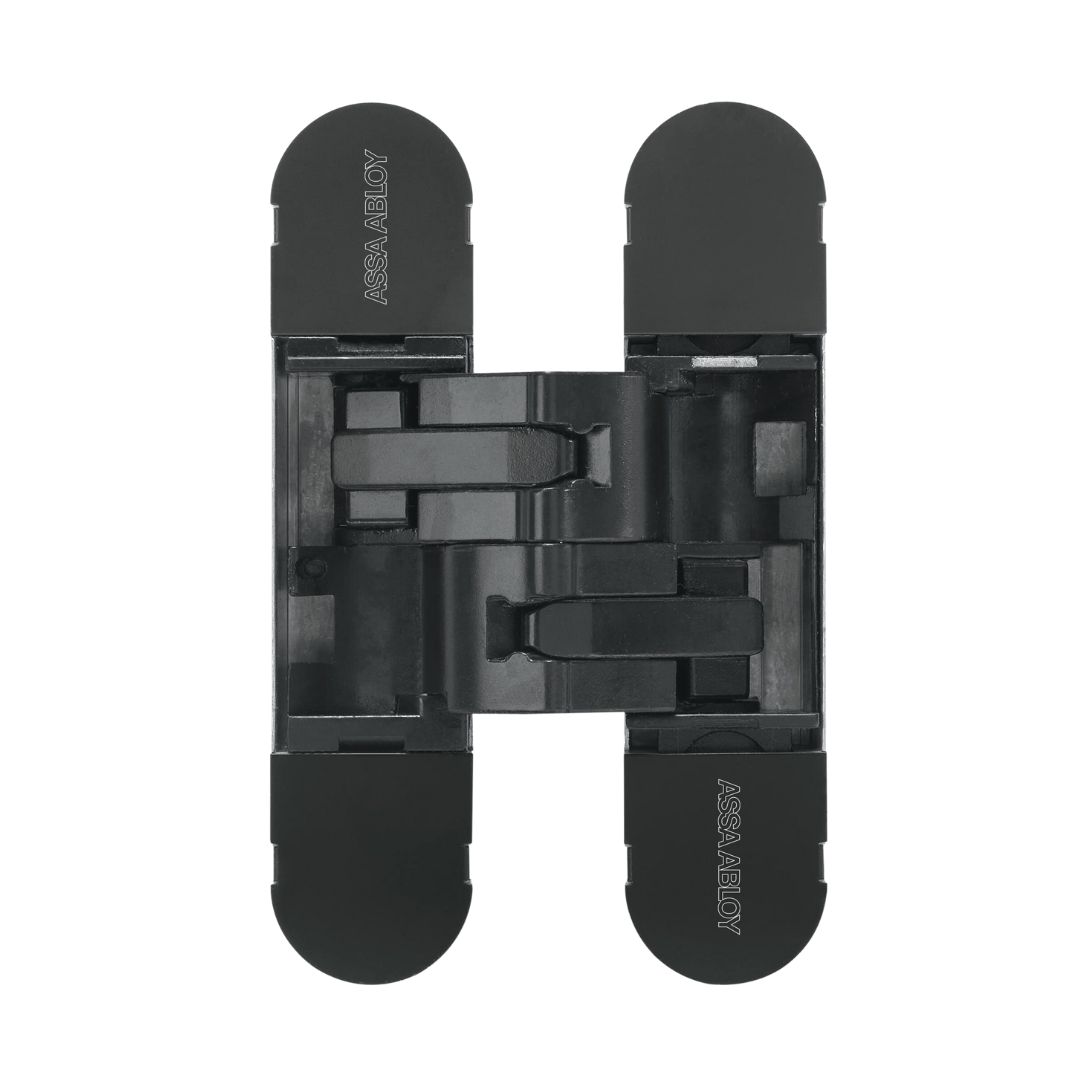

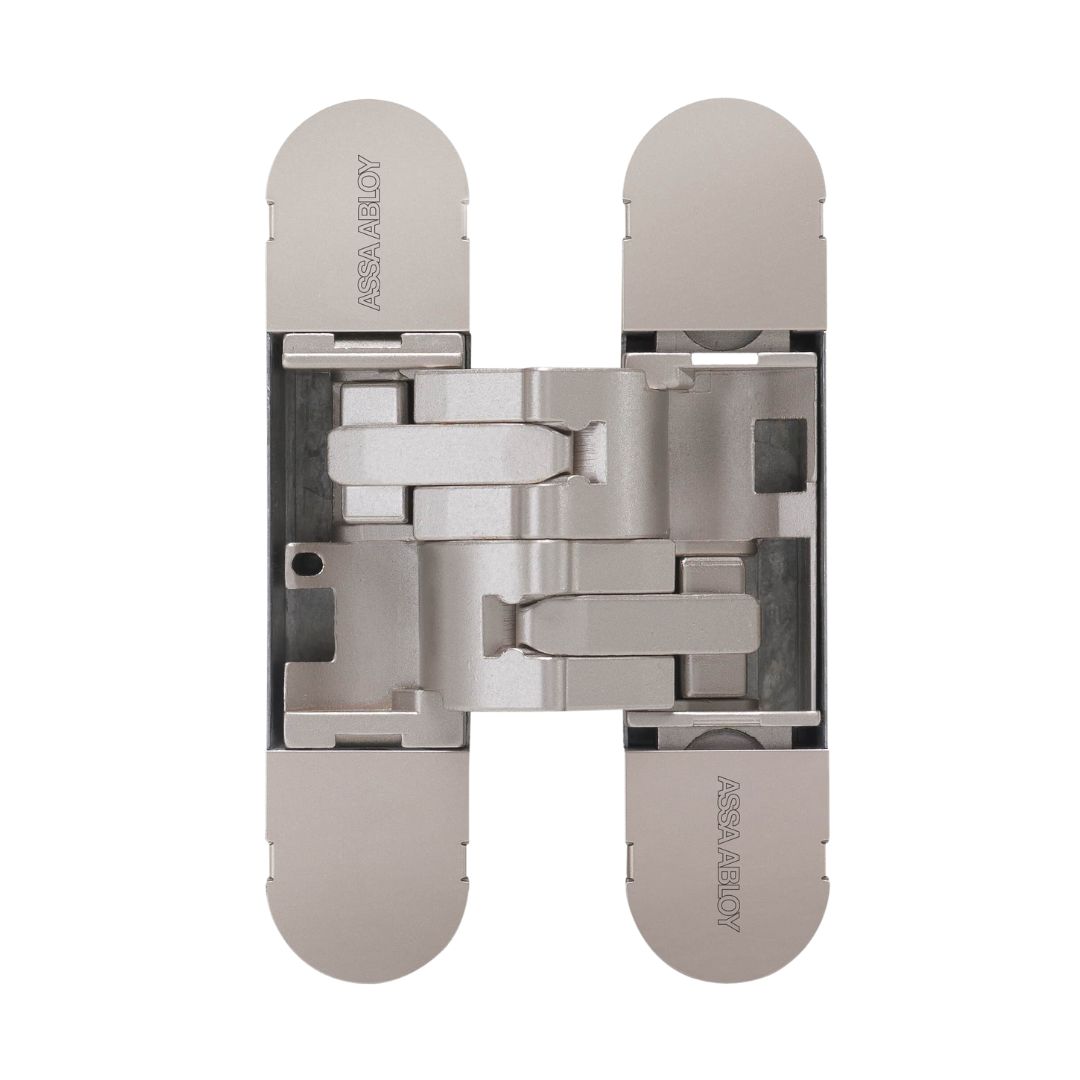

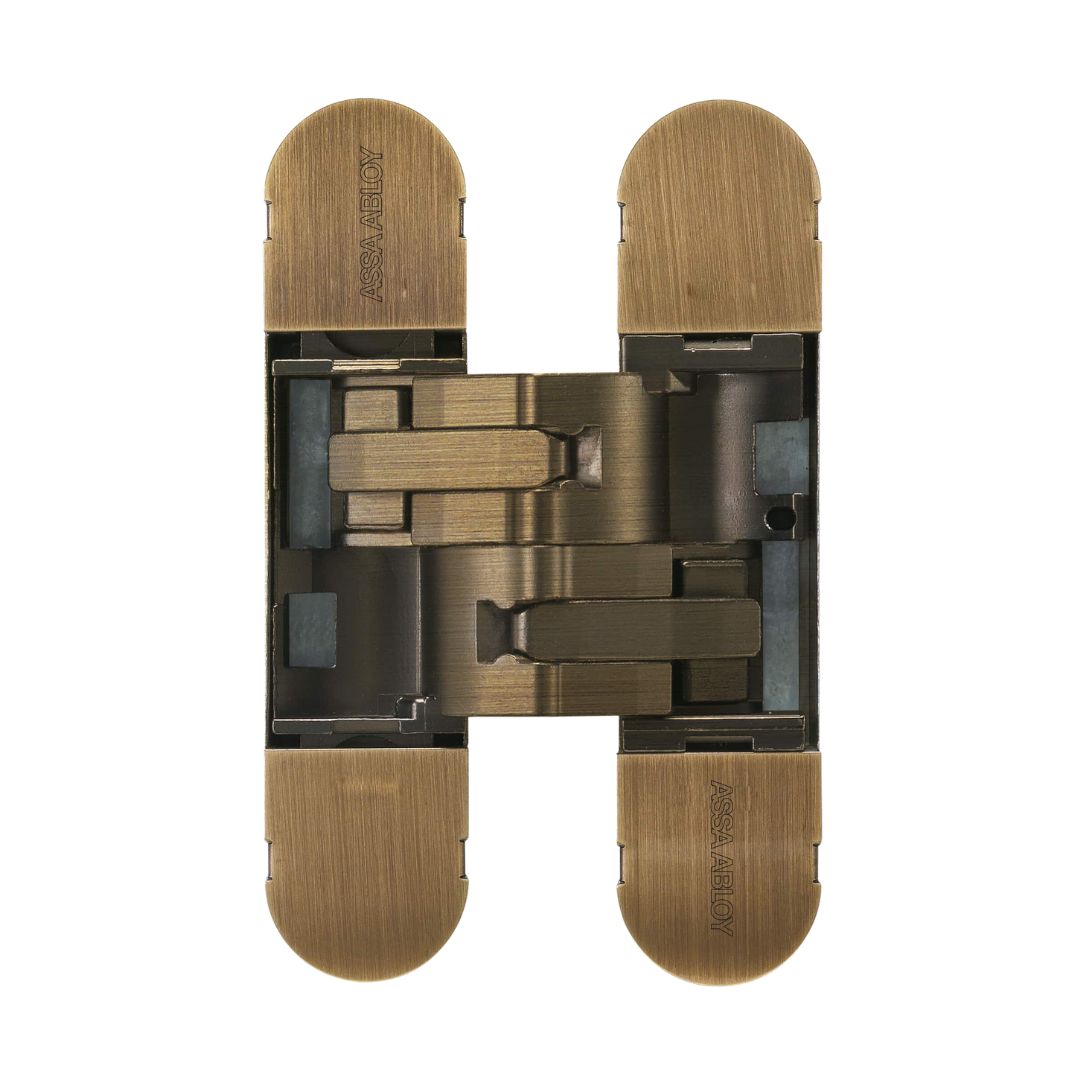

AAH804 Concealed Hinge
Invisible adjustable hinges for doors. Patented Model mm. 130x30
AAH804 Hinge is engineered to meet the increasingly sophisticated needs of modern architecture. Elegant and solid, it is ideal for heavy doors or full height flush doors.
- Manufactured in zamak in 11 different finishes
- Suitable for doors of 35 mm min. thickness
- Big reversibility range: central for doors from 35 to 45 mm thick
- Suitable in case of baseboard or claddings till 15,5 mm
- Total length 130 mm
- Depth 21 mm only
- 3D adjusting system

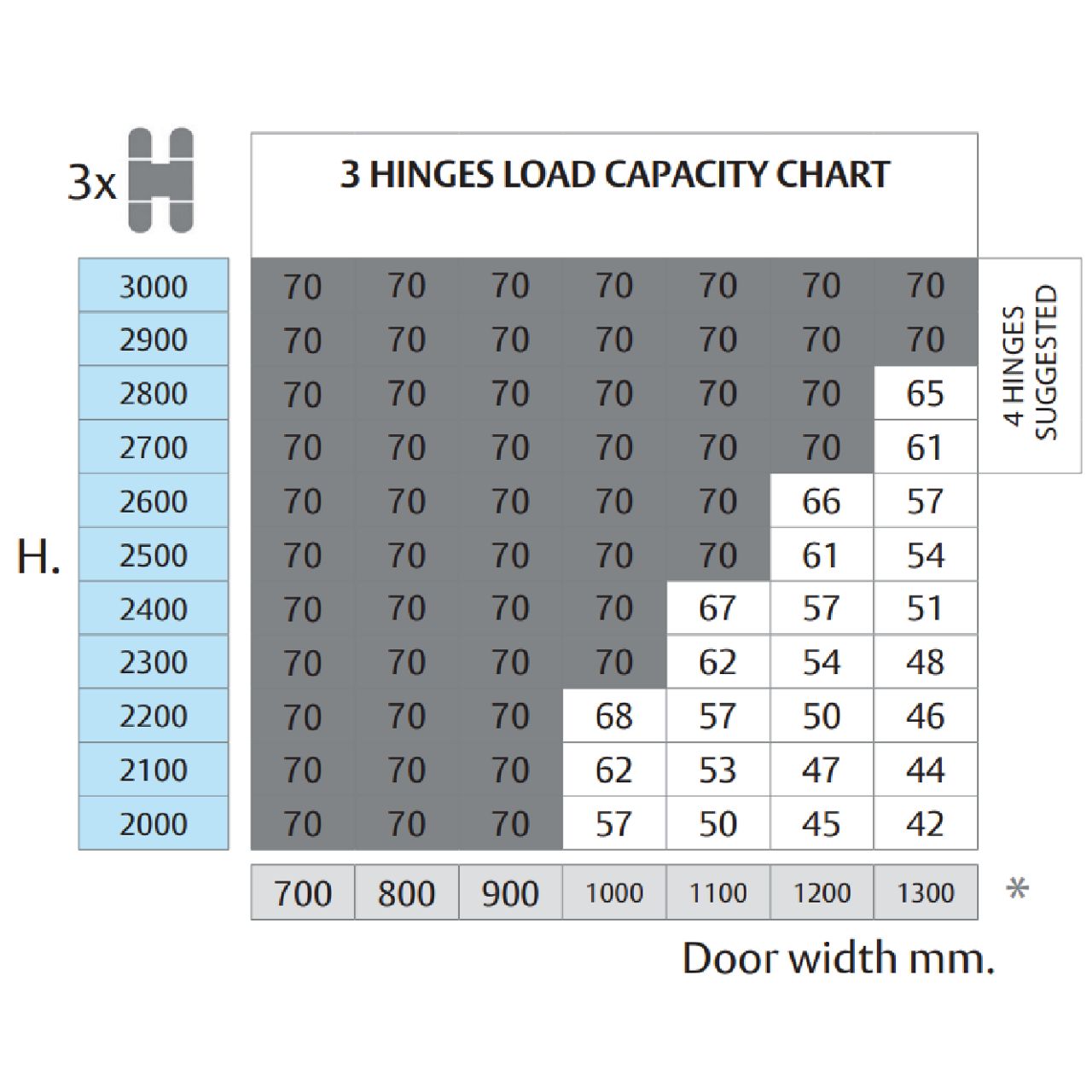

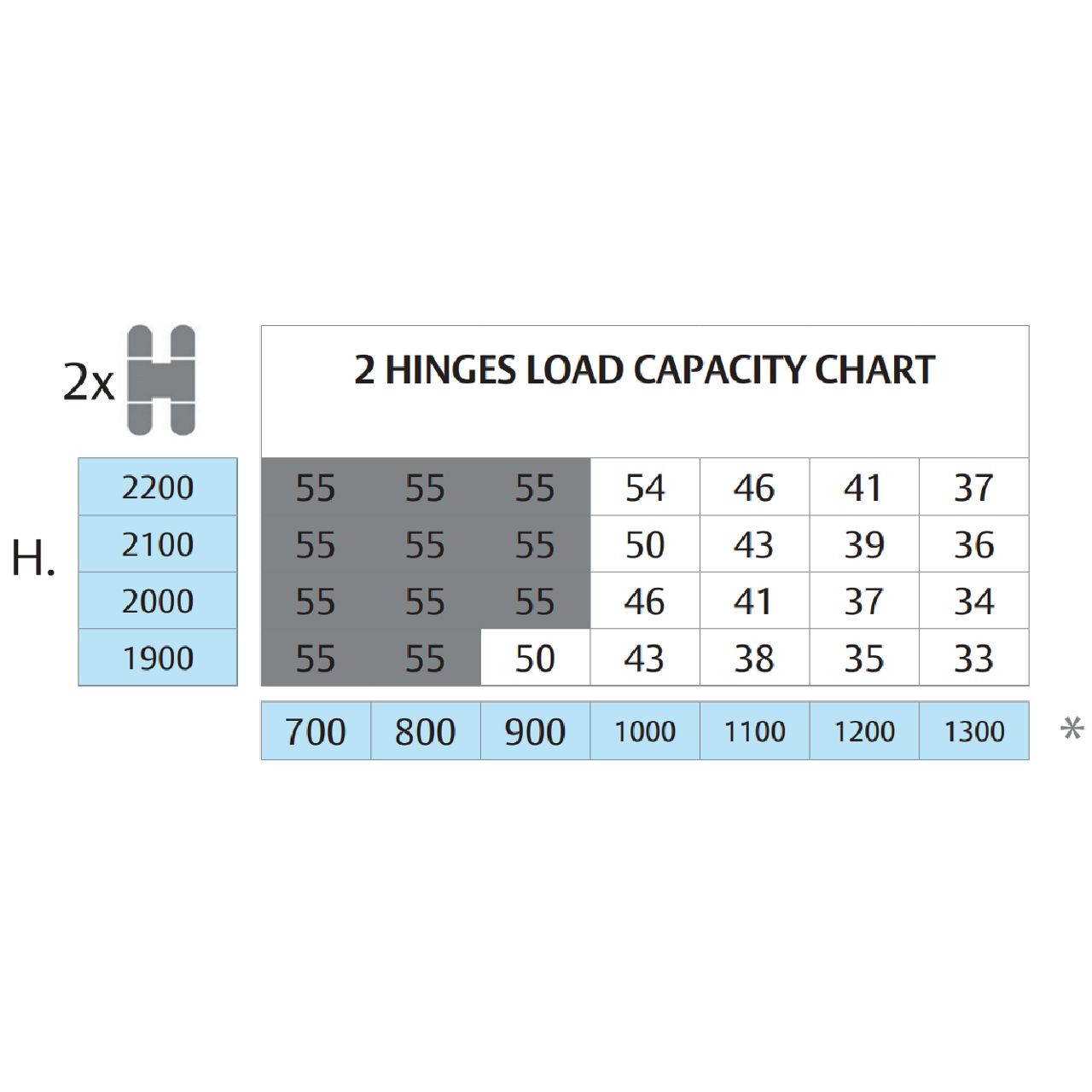

- Load capacity up to 70 kg
- Easy installation and slot symmetry
- Revised in aesthetics and operation: now more elegant and resistant to oxidation due to the new external case in zincked zamak. Joint evolved for better performance: smoother movement, extremely precise, durable and now certified for doors up to 1000 mm wide
1 of 9
FireProof
3D Adjustable
Maintenance Free
