AAH802 Concealed Hinge

Invisible adjustable hinges for doors. Patented Model mm.128x22

The new Adjustable AAH802 Hinge stands out in its segment for its high-quality materials, finishes, minimal design, and meticulous attention to detail. These characteristics add value to both the doors and the environments  they are placed in.

The evolved mechanism ensures a fluid translational movement which allows to increase* by 70% the internal space of rotation

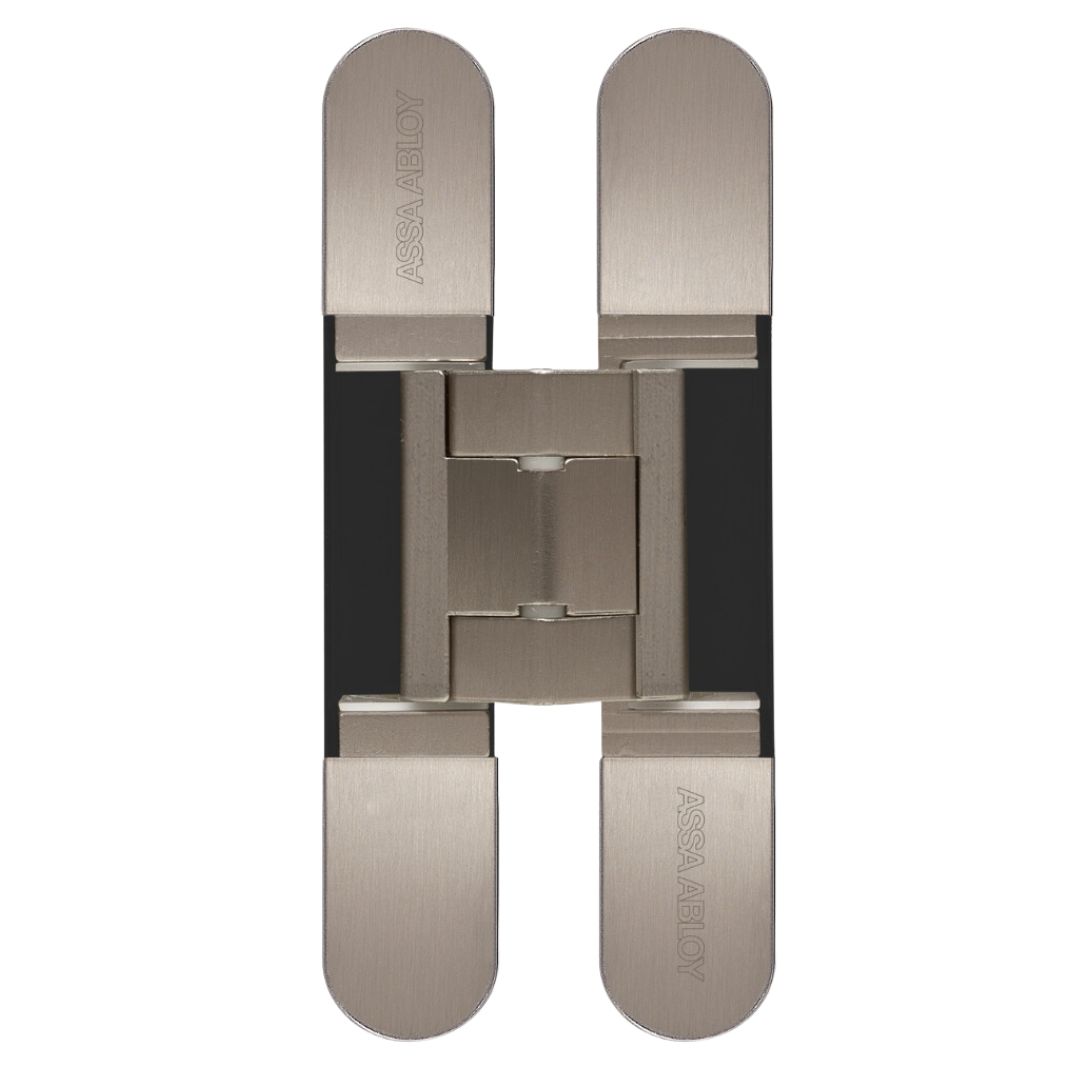

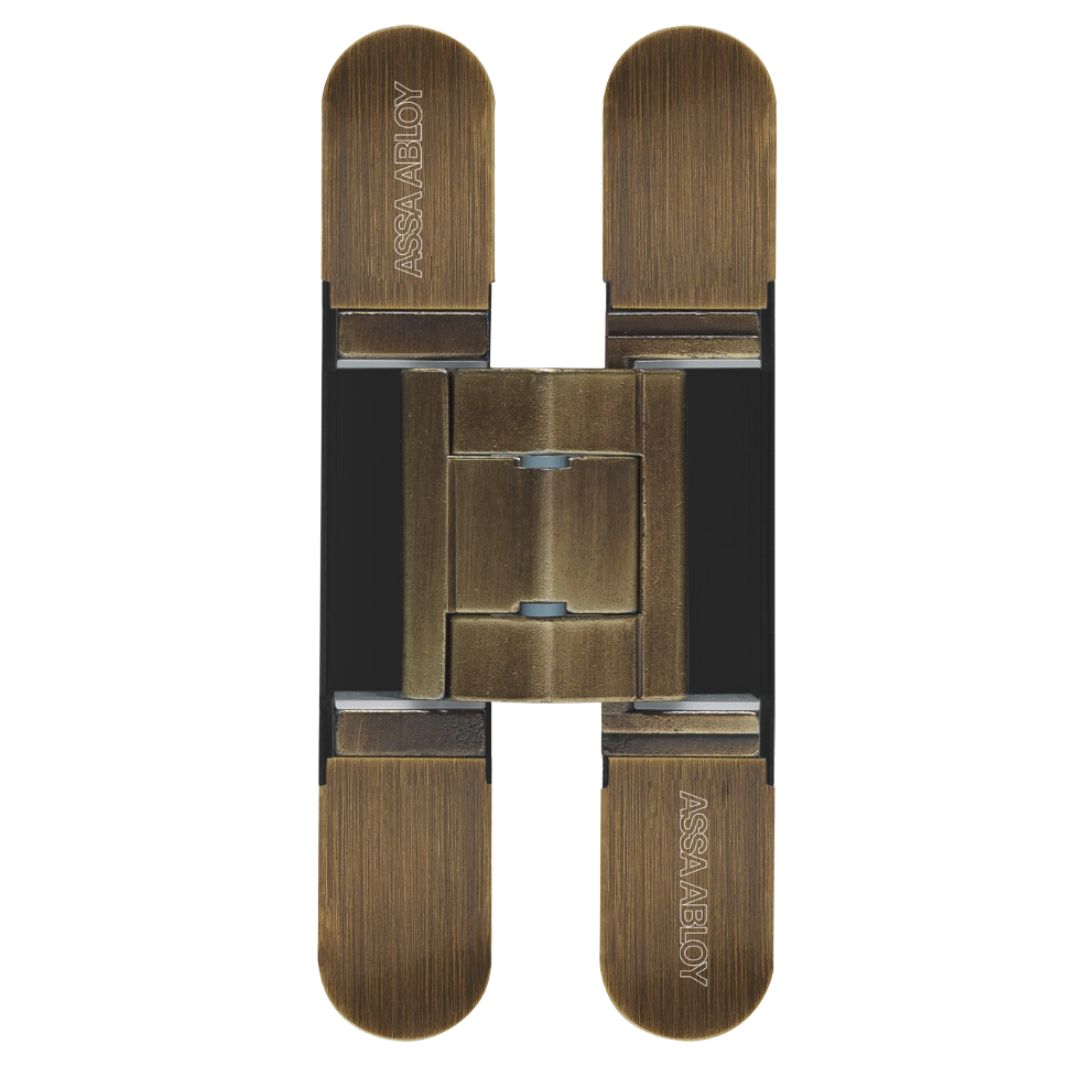

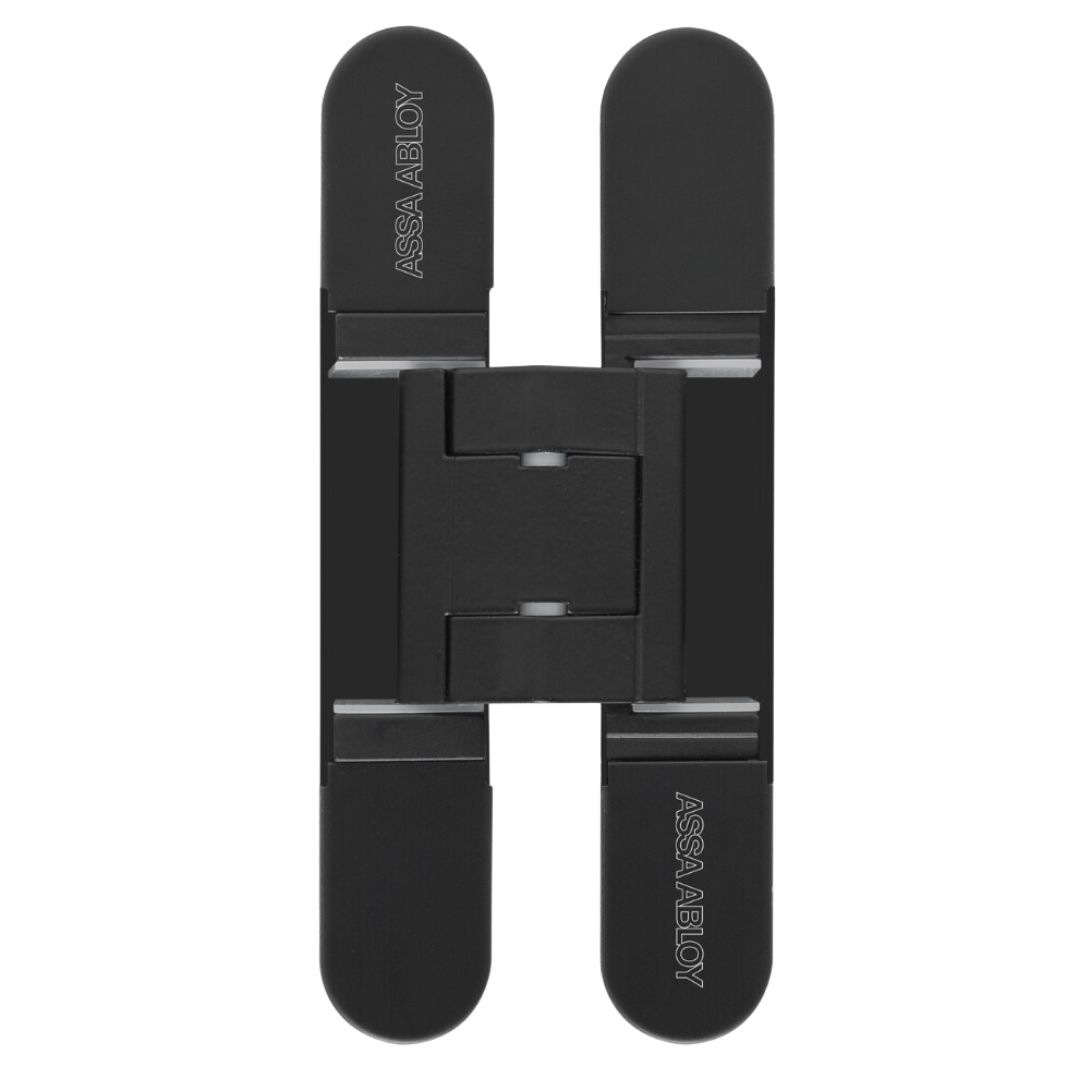

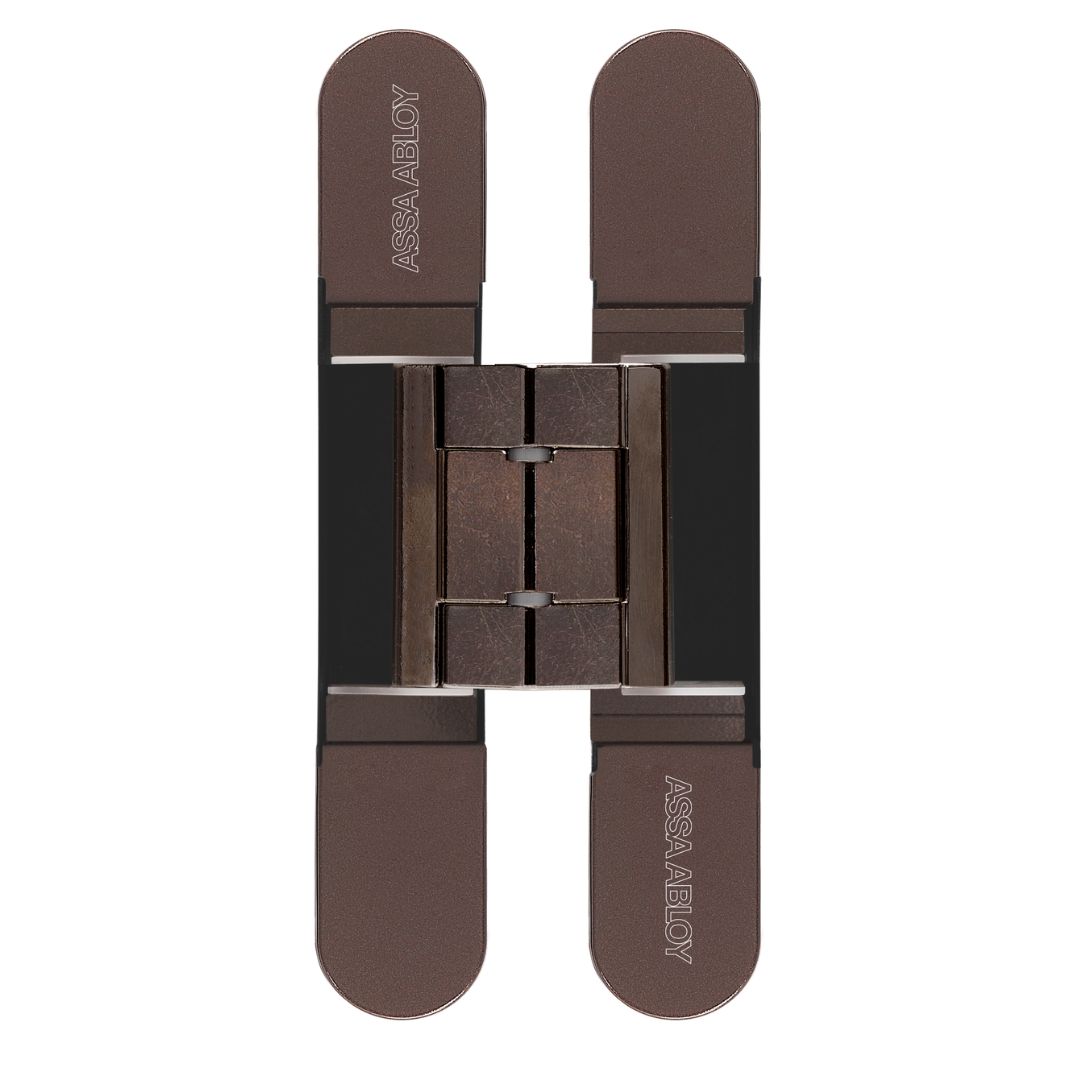

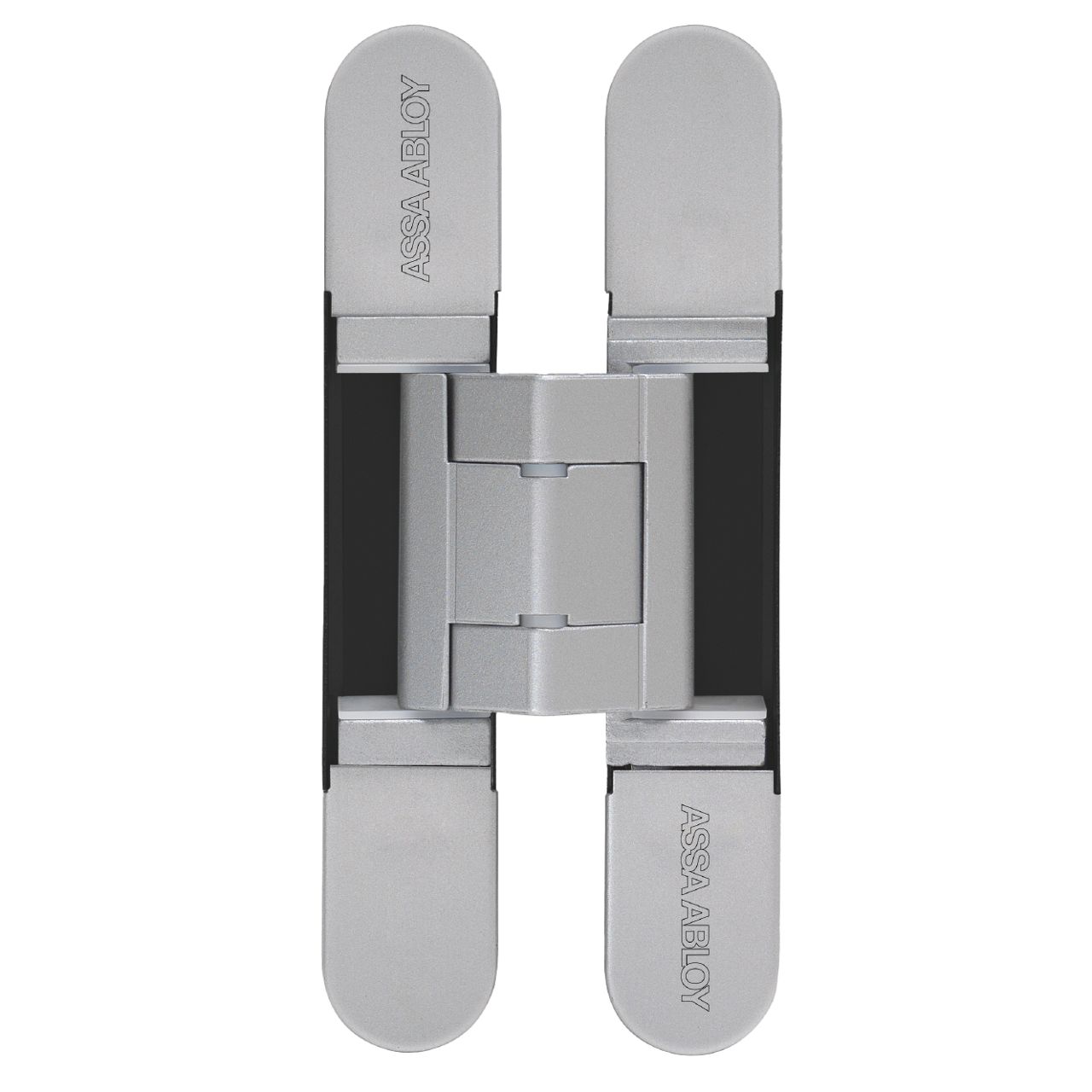

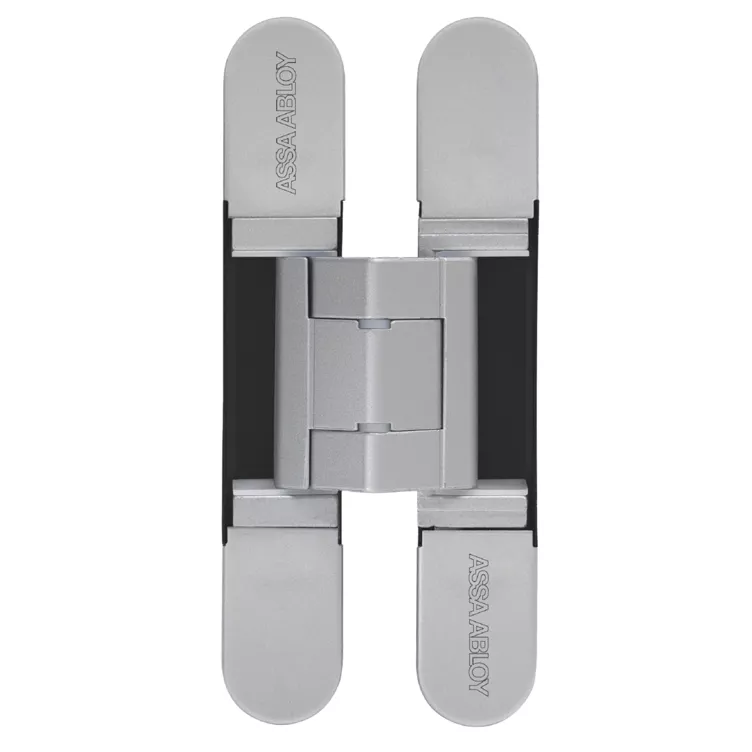

• Manufactured in zamak in 12 different finishes: now available in White painted
• Suitable for doors of 28 mm min. Thickness
• Suitable for polyester overcoating doors
• Total length 128 mm
• Depth 21 mm only
• 3D adjusting system with one simple tool

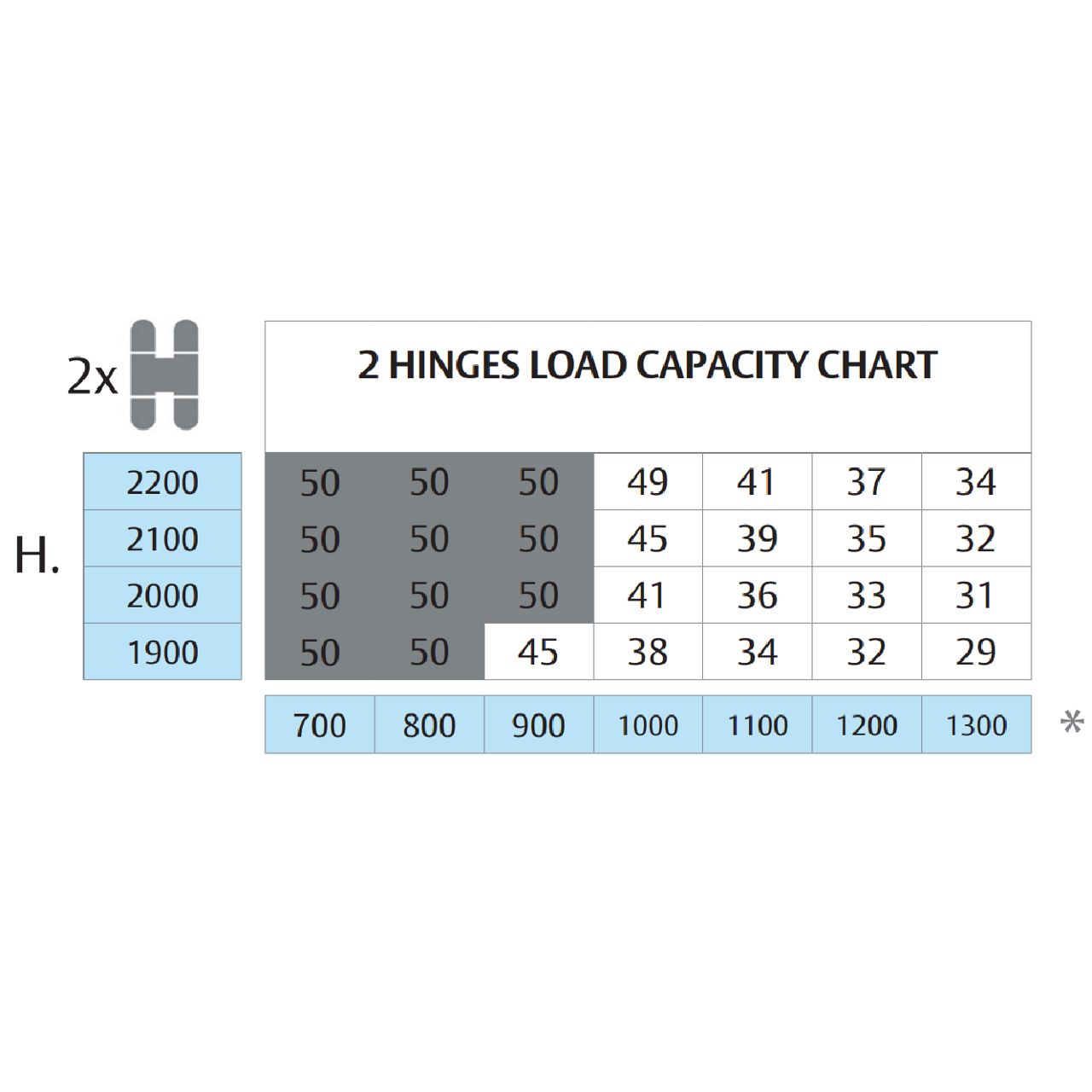

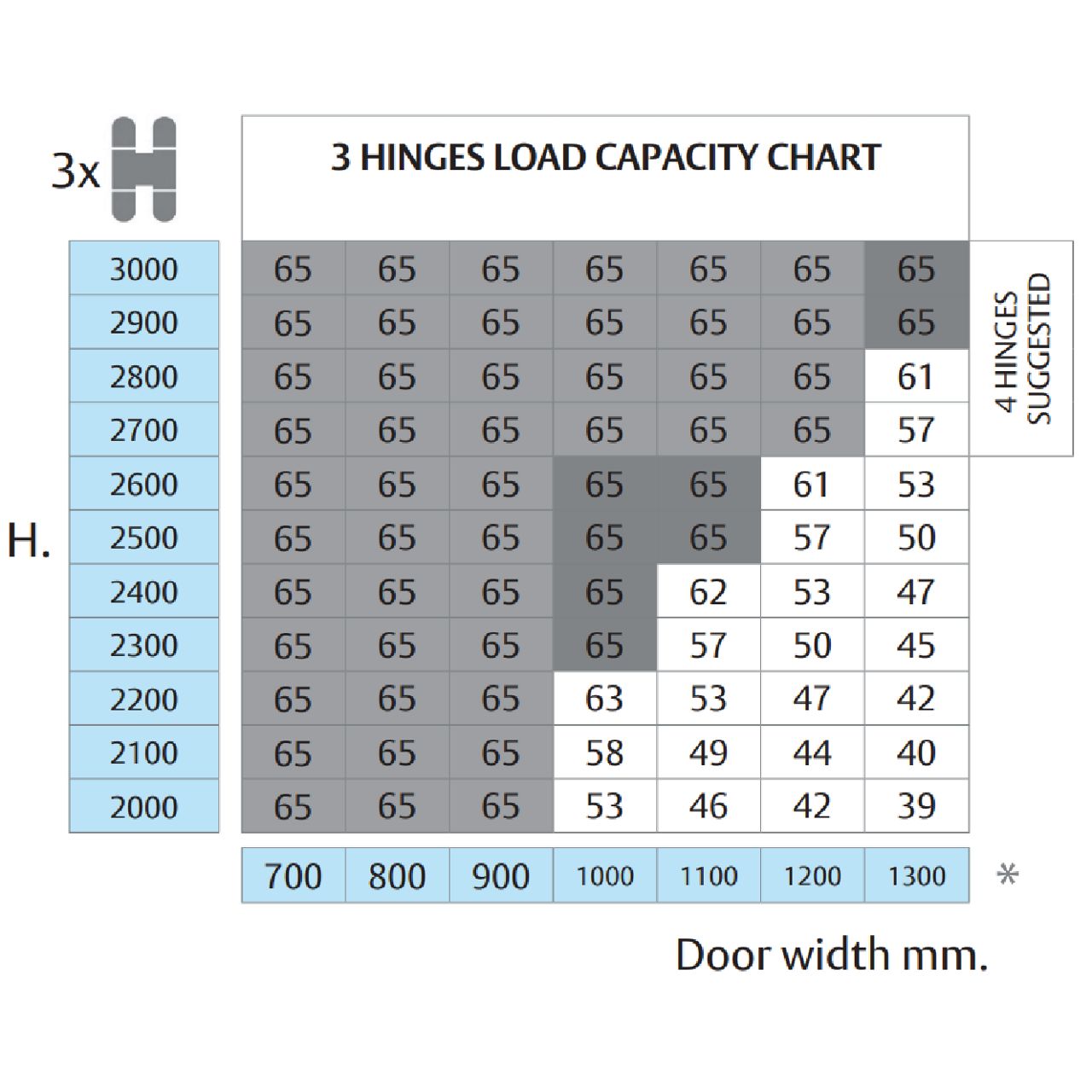

• Load capacity up to 65 kg and 1000 mm wide panels
• Easy installation and slot symmetry

*Compared to the hinges of equal dimensions on the market.
