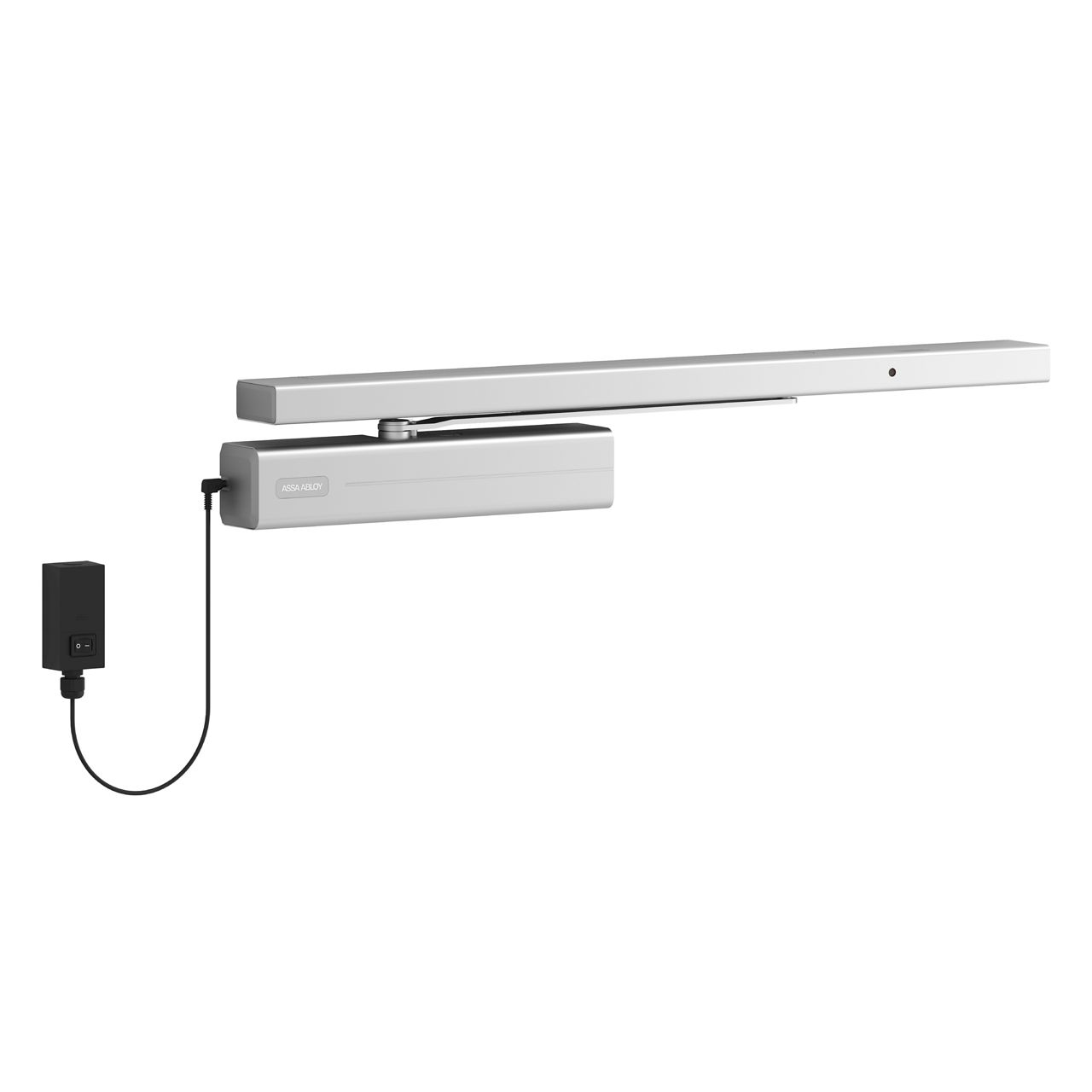

DC700G-FMS

Free-Motion door closer with Cam-Motion® technology, free-swing function and guide rail with integrated smoke detector for single leaf doors, size 3-6

The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. Combining Cam-Motion technology with free-swing function, Free-Motion door closers are designed for smooth opening with almost zero force. The smoke detector with contamination indicator and alarm threshold monitoring is fully integrated into the guide rail.

Characteristics:

• Rapidly decreasing opening force allows easy and barrier-free initial door opening
• Free-swing function starts from a door opening angle ≥ 0° and is active until power supply is switched off
• Optical smoke detector with LED status indication: operating mode, alarm, error
• Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
• Closing and latch speeds can be raised and lowered independently
• Durable, front-facing metal valves make adjustments easy and reliable
• Consistent performance in a wide range of temperatures
• Simplified stock management with universal parts and adaptable solutions
• Built-in 230 V AC power supply allows connection of release button and additional smoke detector
• Certified in compliance with EN 1154/1155, size 3-6
• Suitable for fire and smoke protection doors
• For single leaf doors up to 1400 mm width
• Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894
• DIBt approval with different smoke detection systems
