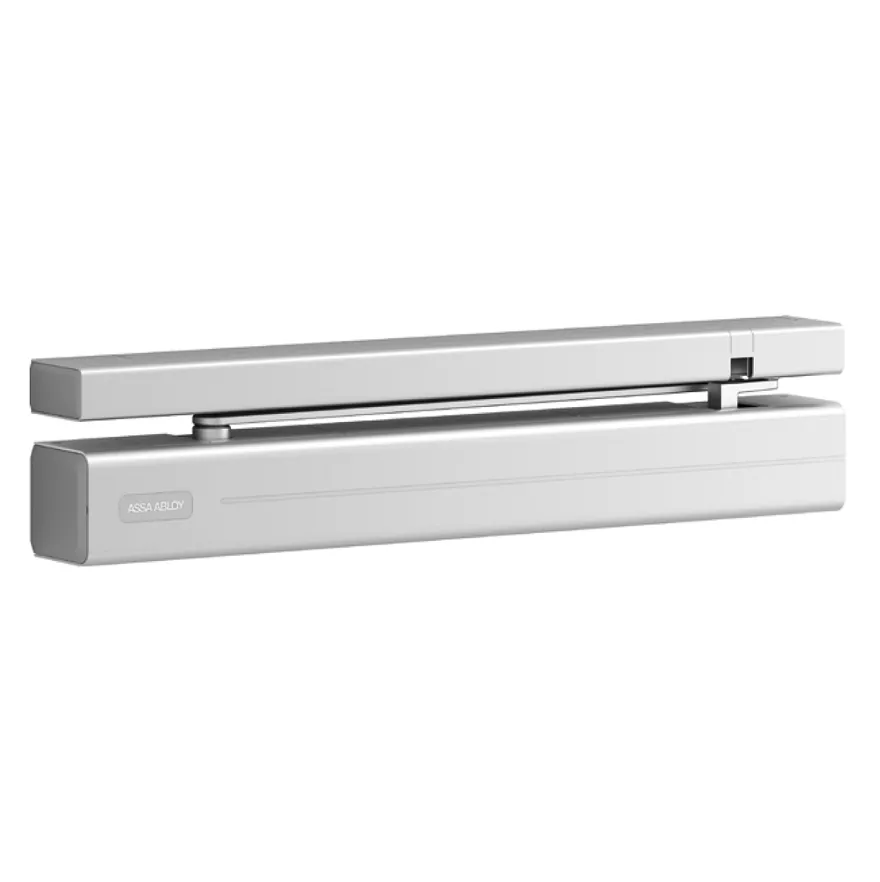

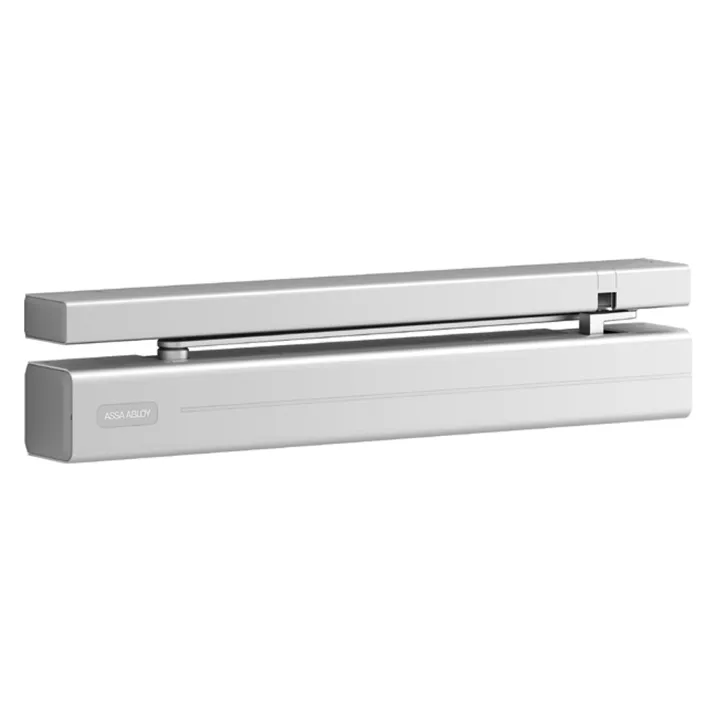

DC700G-CM

Door closer with Cam-Motion® technology, integrated Close-Motion® element and guide rail – for single leaf doors, size 3-6

The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort. With the integrated Close-Motion element doors shut noise-free, ensuring a quieter, secure environment for everyone.

Characteristics:

• Height-adjustable, grooved spindle (14 mm) and Close-Motion element with horizontal (± 6mm) and vertical (± 5 mm) adjustment for easy installation
• Closing and latch speeds can be raised and lowered independently
• Durable, front-facing metal valves make adjustments easy and reliable
• Consistent performance in a wide range of temperatures
• Backcheck functionality as standard protects frame and surrounding areas
• Easy to retrofit using drilling template compliant with EN 1154, supplementary sheet 1
• Certified in compliance with EN 1154, size 3-6
• Suitable for fire and smoke protection doors (only with optional tamper protection)
• For single leaf doors up to 1400 mm width
• Barrier-free according to CEN/TR 15894
